ISO9001 Approved Duplex Steel FC To LC Fiber Adapter
Duplex FC UPC To LC UPC Female To Female Fiber Optic Hybrid Adapter
1. Product Overview:

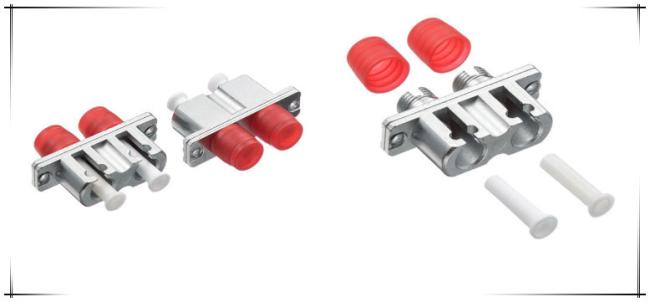

FC-LC Female to Female Duplex Hybrid Fiber Optic Adapter/coupler is passive device with both plastic housing and metal housing type. And these adapters possess the feature of stability and reliability.
FC-LC Male to Female Hybrid Fiber Optic Adapter is a specially design enables direct optical connection between FC plug and LC plug. It has high precision alignment, and achieve the lowest lost transmission in operation.All of Geehe's hybrid optical adapters have precision UPC or APC ceramic sleeves, in simplex and duplex style. They are widely used in the fiber optic links.
2. Optical Cable Adaptor Feature and Benefits:
- Duplex FC Female Connector to Duplex LC Female Connector
- High precision alignment sleeve
- Low insertion loss and high reconnect ability
- Male to Female fiber connector types
- All metal construction for long life
- Interchangeable for a wide range of products
- Used for Multimode connectors

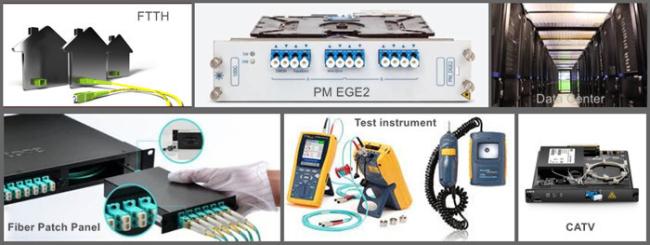

3. Fiber Optic Adapter Applications:
- High-speed transmission systems
- FTTH and FTTx
- Telecommunication Networks
- Local Area Network
- Testing Instruments
- CATV System
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC FC ST LC MU |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |

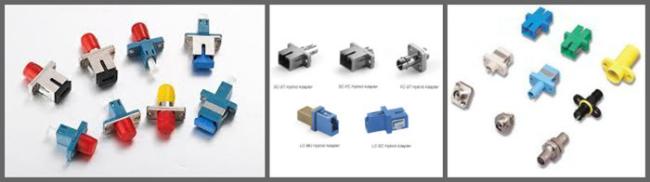

6.More Options Optic Adapters:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control

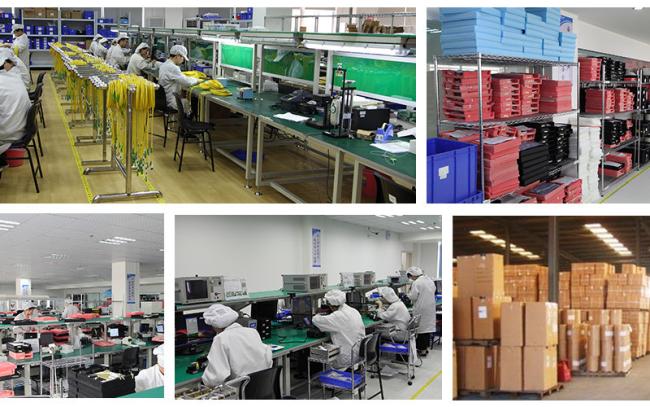

We guarantee that every product to the hands of customers is subject to stringent testing standards
4) 24/7 After Service
Any questions about our products welcome to feedback us, we will reply with 1 hour and give solve solutions within 2-3 hours.
