Black MPP Material 1*16 Splitting Fiber Optic Closure
Fiber Optic Dome Closure IP65 Outdoor FOSC PP Thread Mechanical sealing, silicon rubber

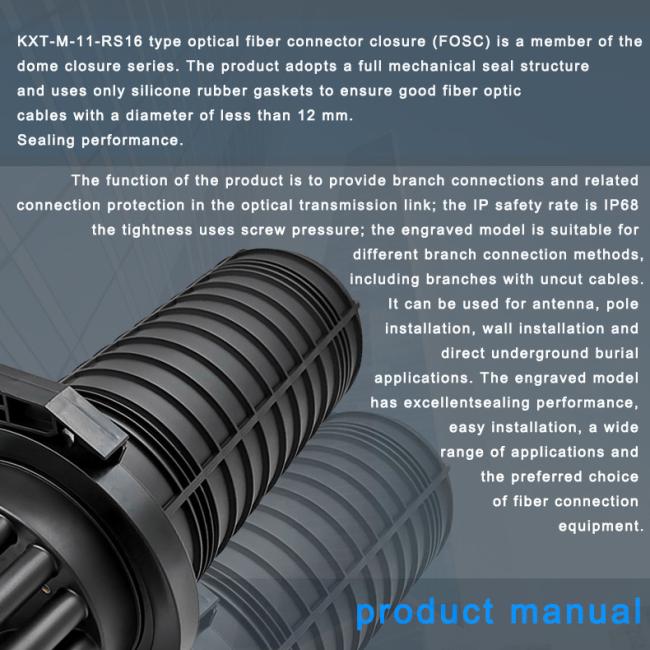

A member of dome closure, used for the products' straight through connection in the optical transmission process, provides protection for the joint connection. With four small round ports and one large round port, it adopts threaded mechanical seal, can be used for aerial, pole-mounting, wall-mounting and underground application. It is excellent in sealing performance, easy for installation, and has wide application.
1.Features:
1. All performance indicators meet the requirements of the national YD 814.1-2004 closure standard;
2. Three-in and three-out cable ports, there are 5 round cable holes (4 small & 1 large), which suit for the access of 7~22mm cables;
3. The outer box body is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.
4. Stacked structure splice tray and independent insulation grounding device make it flexible, convenient and safe for the optical fiber core configuration, expansion and the cable grounding.
5. The splice tray is provided with a dedicated slot for optical splitter, which is used to fix 1:4 and 1:8 or 1:16 PLC optical splitter.

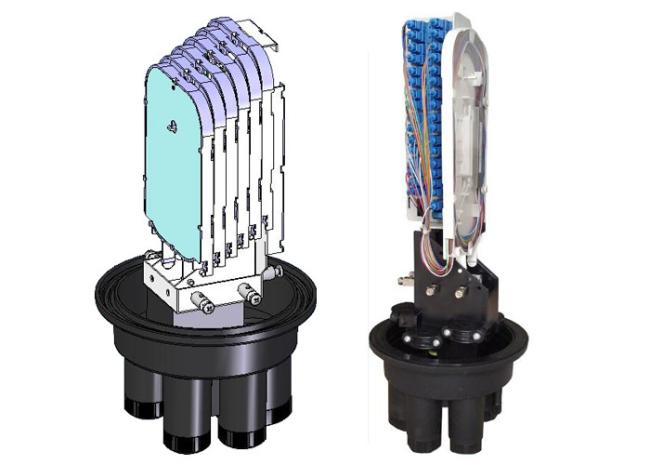

2. Main components:
| Number | Name | Quantity | Application | Remark |
| 1 | Cover | 1 pc | Integrated protection of closure | |
| 2 | Fiber splice tray | required | Fix the fiber, protect heat shrink tube, storage fiber and splitter | |
| 3 | PLC splitter(2:32 in max) |
2:32(1 pc) 2:16(2 pc) |
Light splitting | Optional part |
| 4 | SC adapter | 36 pcs | Connection | Optional part |
| 5 | SC-1.5m pigtail | 32 pcs | Fusion with inlet cable | Optional part |
| 6 | Base | 1 set | Fix the internal and external structure | |
| 7 | Plastic hoop | 1 set | Fix the base and cover | |
| 8 | Sealing ring | 1 set | Big sealing part for sealing cover and base, different small sealing parts for fiber sealing | |
| 9 | Plastic plug | 4 pcs | For non cable entry sealing | |
| 10 | Valve | 1 set | Gas-filled test air pressure and the sealing performance | Optional part |
| 11 | Earthling device | 1 set | Leading the internal mental components to grounding | Optional part |
3. Packing list:
| Box body | 1 set | Manual | 1 pc |
| Stainless steel mounting set | 1 set | Ground wire (L=120mm) | 1 pc(optional) |
| Branch fork | 1 pc | Pole connector | 2 pcs(optional) |
| Splice bag (12 pcs)/bag | Configured by core number | Foil paper | 2 pcs(optional) |
| Bare fiber protection tube | optional | Stainless steel hoop | 4 pcs(optional) |
