Tin Coating Food Grade Metal 0.4mm Cold Rolled Steel Coil
SPCC Tin Coating Tinplate Steel Plate Coils For Food Grade Metal, Thickness: 0.40mm
| Tinplate, thin steel sheet with a coating of tin applied either by dipping in molten metal or by electrolytic deposition; most tinplate is now produced by the latter process. Tinplate made by this process is actually a sandwich during which the central core is strip steel. This core is cleaned during a pickling solution then fed through tanks containing electrolyte, where tin is deposited on each side . because the strip passes between high-frequency electric induction coils, it's heated in order that the tin coating melts and flows to make a lustrous coat. the top product features a tin coating of about 0.00003 inch (0.00076 millimetre) on all sides . Tinplate has the strength and formability of steel combined with the noncorrosive and nontoxic properties of tin and has the extra property of easy solderability. While it's largely used for containers for food and beverages, paints, oils, tobacco, and various other products, its use has broadened to incorporate toys, baking equipment, and parts for radio and other equipment . |
Tinplate Product specification
|
Thickness |
common plate:0.13 - 1.2mm |
|
coating plate 0.13 - 0.5mm |
|
|
thickness tolerance |
-+0.005mm |
|
width |
common plate 600mm - 1100mm |
|
coating plate 600 - 1000mm |
|
|
width tolerance |
0 - 2mm |
|
modulation system |
T1 - DR8 |
|
tin content |
1.1 - 5.6mg/m2 |
|
shape |
1.5/5 (wave height / number) |
Tinplate Deep processing tin plating products and related requirements
|
number |
Product Usage |
Reference temper |
Control points |
Processing |
|
1 |
Miscellaneous can |
T2-T3 |
Plate shape |
Yellow inside White painted Varnish |
|
2 |
Food can |
T4-T5,DR8 |
Mechanical properties |
Yellow inside White painted |
|
3 |
Aerosol can |
T2.5-T4 |
Leather inclusions voids |
Yellow inside White painted Varnish |
|
4 |
Beverage can |
T4-T5,DR8 |
Mechanical properties |
Yellow inside White painted |
|
5 |
Aerosol can top |
T2.5 |
Surface,mechanical properties |
Internal and external iron White painted |
|
6 |
Unscrew the cover |
DR8 |
Mechanical poperties shape |
Yellow inside White painted |
|
7 |
Glass cap |
T4 |
surface |
Yellow inside White painted |
|
8 |
Easy to open cover |
T4 |
Mechanical |
Yellow inside White painted Varnish |
|
9 |
Chemical barrel |
T2.5 |
Plate shape |
Yellow inside White painted Varnish |

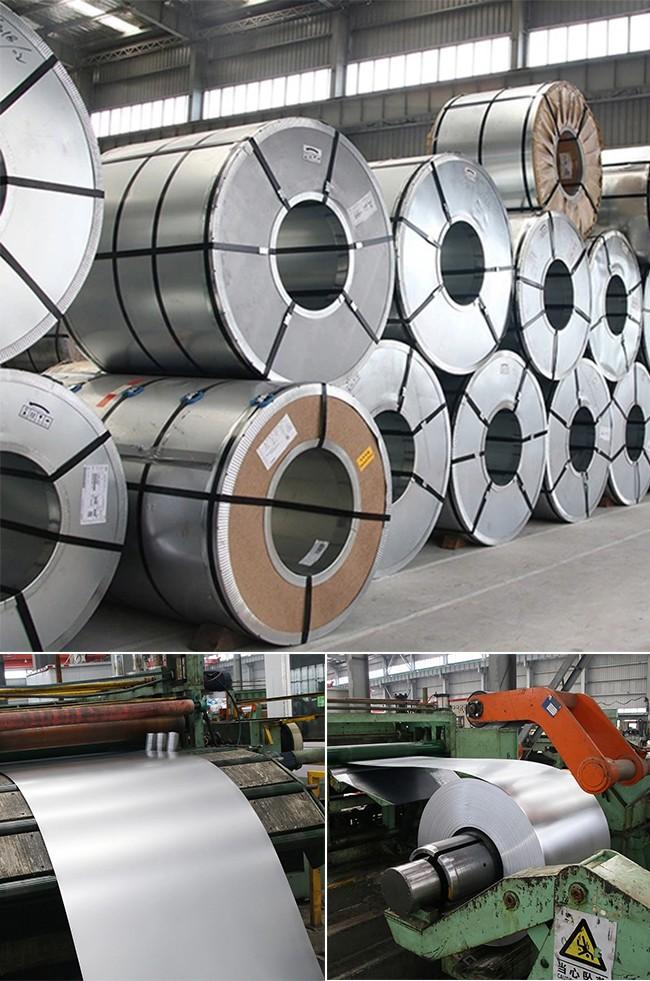

Tinplate Product Show
Packaging & Shipping:
| Guide For Ordering Products |
|
Q1:Could you test the quality before shipment?
Q2:Do you accept customization ?
|
Q1:Could you test the quality before shipment?
A1:we will have a exactly test about the goods before shipment.
Q2:Do you accept customization ?
A2: Of course, We accept.
Q3:When can I get the price?
A3:We usually quote within 24 hours after we get your inquiry from your side.
Q4: How to do the payment if I plan to place the order?
A4:30% T/T Deposit, balance 70% before shipment.
