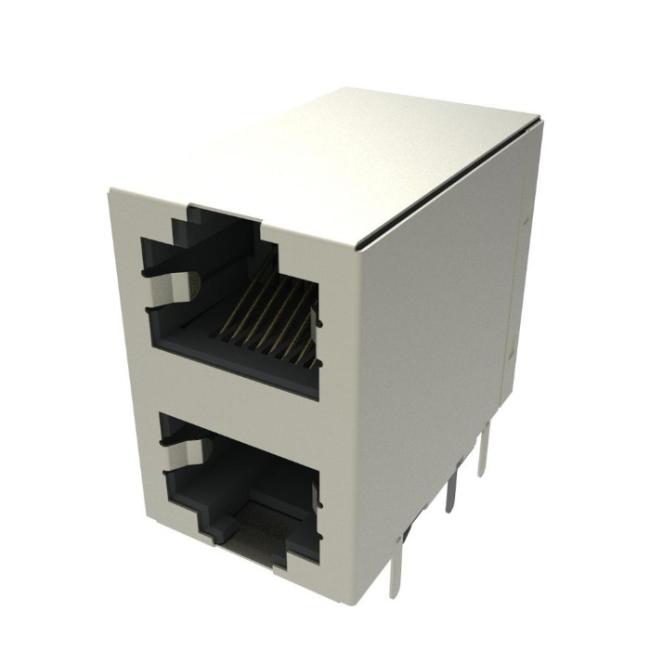

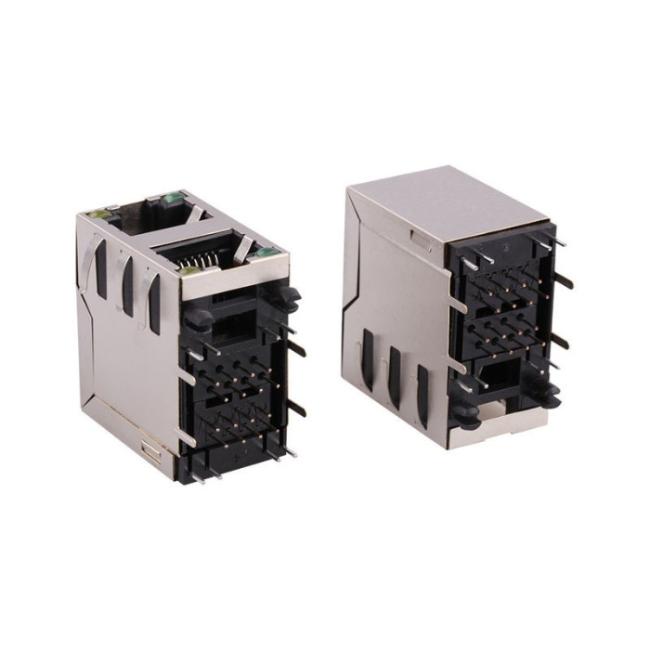

Dual Port RJ45 8P8C Female Right Angle Dip Connector With Shield

Price Negotiable

Price: 100 - 999 Pieces = $0.40, 1000 - 4999 Pieces = $0.38, 5000 - 9999 Pieces = $0.36, ≥ 10000 Pieces = $0.34

MOQ: 100 Pieces

Delivery Time: 7 Days

Brand: DZ

Product Description

Dual Port RJ 45 8P8C Female Right Angle Dip Connector With Shield

# Female Right Angle Dip Connector Properties

1.MATERIAL:
1-1.SHELL:	BRASS
1-2.HOUSING:	PBT+30%G.F. UL94 V-0 BLACK
1-3.TEMINARL:	Phosphor Bronze
2.PLATING SPECIFICATION
2-1.TERMINAL:	GOLD PLATED/3U"/6U"/15U"/30U"
2-2.SHELL:	NICKEL PLATED
3.MECHANICAL PERFORMANCE
3-1.INSERTION FORCE:	5N~20N.
3-2.WITHDRAWAL FORCE:	INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.
3-3.DURABILITY:	750 Cycles MIN.
4.ELECTRICAL PERFORMANCE
4-1.CURRENT RATING:	1.5A.
4-2.CONTACT RESISTANCE:	30milliohm Max
4-3.INSULATION RESISTANCE:	500 MΩ MIN @ 500V DC.
4-4.DIELECTRIC WITHSTAND VOLTAGE:	100V/AC.
5.OPERATING TEMPERATURE RANGE:	-40℃ to +85℃
6.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.
