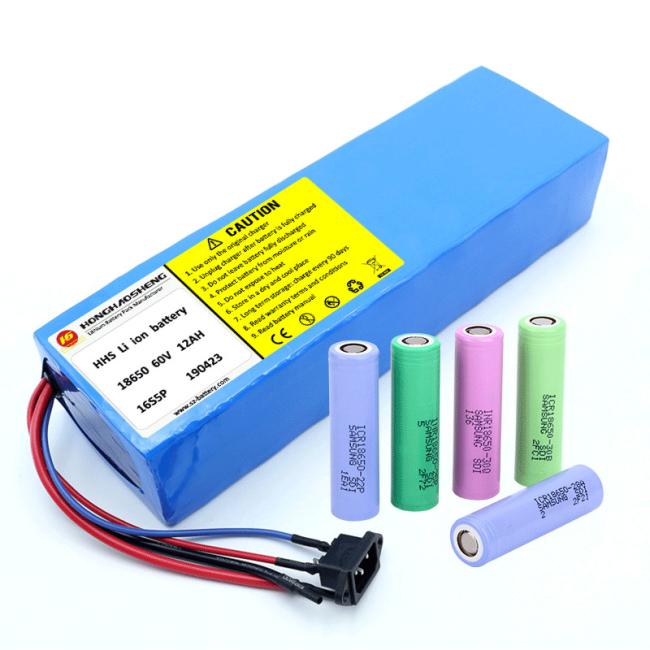

16s 60v 25ah Li Ion 16S1P 18650 Battery Pack
60v 25ah li-ion 16s Electric Scooter Lithium Battery pack balance car
Product parameter:
Nominal Voltage:60v
Input Voltage:67.2v
Output Voltage: 40V-67.2V
Nominal capacity:25AH
Battery size: customised
Battery cell:18650 25Ah Lithium rechargeable battery
Gross weight:7kg
Protection:Overcharging, overdischaring,overcurrent, short circuit
Package:Blue PVC
Charging voltage DC:67.2v CC/CV
Max continuous charging current:2A
Max continuous discharging current:15A
Resistance: ≤30mΩ
Working temperature: -40~+70℃
customized li-ion battery pack 12v 24v 36v 48v 60v 72v / 4ah 5ah 6ah 7ah 8ah 9ah 10ah 12ah 14ah 15ah 18ah 20ah 30ah 40ah 50ah 60ah ..........
| 1. Need li-ion battery chargers for; Constant current constant voltage; |
| 2. The charging voltage: 67.2 V + / - 0.2 V |
| 3. The charging current: 2 a or less |
| The battery discharge requirements ] : |
| 1. The aviation plug output three core charge, and two output line |
| 2. The output line can be charged to use; Also can use discharge |
| 3. The maximum instantaneous current: 8 a |
| 4. The maximum working current: 6 a |
| 5. Product is a built-in battery |
| 6.The serial number test project standards |
| 7.1 DC voltage charging voltage: 67.2 V CC/CV |
| 8.Single section equilibrium voltage 4.20 + / - 0.025 V |
| 9.2 to 84 + 10 single section and balanced current ma |
| 10.Current consumption (consumable) 20 mu A or less |
| 11.Maximum continuous charging current 2 a |
| 12.Maximum continuous discharge current 15 a |
| 13.Section 3 over charging protection (single) of charging test voltage 4.275 + / - 0.025 V |
| 14.Charging detection delay time of 0.5 S to 2.0 S |
| 15.Charging recovery voltage of 4.175 + / - 0.025 V |
| 16.Section 4 over discharge protection (single) discharge detection voltage 2.50 + / - 0.05 V |
| 17.Discharge detection delay time 10 ms - 200 ms |
| 18.Over discharge recovery voltage of 2.40 + / - 0.05 V |
| 19.overcurrent protection over-current detection voltage 0.10 + / - 0.015 V |
| 20.Over-current detection current 80 + 10 a |
| 21.Over current detecting 5 ms - 20 ms delay time |
| 22.Restore the state Disconnect the load, automatic recovery |
| 23. short circuit protection test status External short circuit |
| 24.Us detection delay time of 200-200us |
Honghaosheng company, all battery cells that we choose for battery pack are totally new and from the same lot, all under strictly tested and inspected, cell consistency of performance and stable working performance can be more effectively guaranteed
1.)All production process strictly under quality
2.) We have excellent R&D team support
3.) We provide OEM/ODM services
4.)We provide good services on pre-sale, and also after sale
5.)No hesitate on reply and action
16.)Certificates: CE, ROHS, MSDS,UN38.3,IEC62133,UL
17.)We promise 16months warranty
1).Samples checking: sending by Express ( DHL / UPS / FEDEX / TNT ,by air)
2).Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),
or we can accept other shipping terms according to your requirements.
Your trial order will be highly suggested and appreciated
