4.07wh 3.7v 1100mah Lipo 603450 HHS Battery
HHS 603450 3.7v 4.07wh 1100 mah rechargeable Lithium Polymer Battery
| Model | HHS603450 |
| Nominal voltage | 3.7v |
| Nominal capacity | 1100mAh |
| Size | thickness × width × length (mm) |
| 6.0±0.5×34±0.5×53±0.5mm (with PCM) | |
| Advantage |
|
| Weight | about 20g |
| Max charge current | 1C |
| Charging method | charge with constant current 1C to 4.2v,then charge with constant voltage 4.2v, till charge current less than 0.01C |
| Max discharge current | 1C |
| Discharge cut-off voltage | 3v, the over-discharge detection voltage of PCM |
| Operating environment | Charging, 0°C ~ 45°C ; 65±20%RH |
| Discharging, -20°C~60°C ; 65±20%RH | |
| Storage environment | -20°C~45°C |
| 65±20%RH | |
| storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH; | |
| CycleLife (80% Prime Capacity) : |
>500times |
| Charging Attention | Charging current and charging voltage should be less than specified in the Product Specification. |
| The charger shall be designed to comply with Specification. | |
| It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance. |
Advantages:
1> Low self-discharge
2> Long cycle life
3> Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload
4> dimension and capacity can be customed according to your requirement.
5> with qulity warranty
6> applied to tablet pc,laptop,electronical tools and so on
7> CE/ROSH/SGS/UL/MSDS/UN38.3 standard
8> super low internal resistance and fast charging
Aplications:
1. Telecommunication: cellular phone, web phone, interphone, Bluetooth earphone.
2. Portable office devices: Notebook, PDA, portable electrograph, portable printer.
3. Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4.
4. Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.
5. Illuminate devices: miner lamp, searchlight.
6. Others: toys, models.

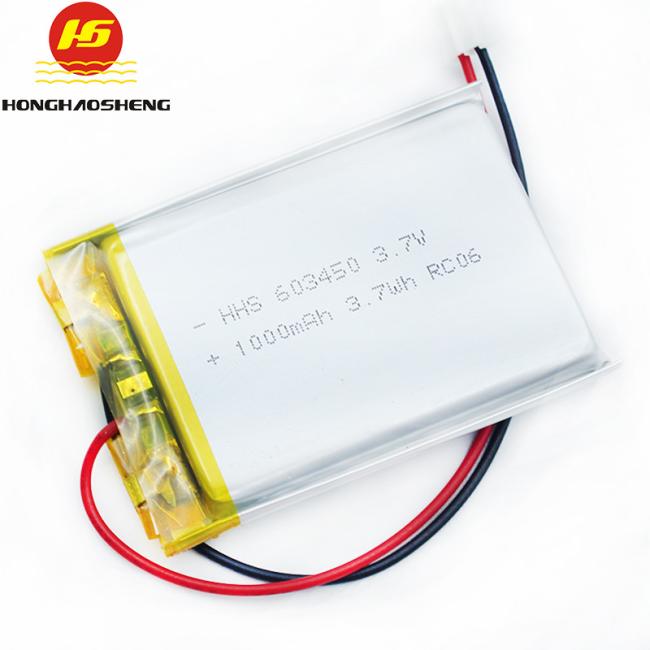

3.7v-4.07wh 1100 mah rechargeable li-ion battery's Pictures:
Certificate:
Why do you choose us?
1. Professional lithium-ion battery pack for over 10 years,have own factory.
2. Strong R&d team to support.
3. 100% T/T before shipment and one year warranty
4. BMS solution come from NSK and Recoh.
5. Offer OEM service for customer small order.
6. Quick action & respond.
7. competitive price and best sales and after-sales sevice.
OEM is available.
