Logistic Hall 60w 150w 5050 Chip Led Canopy Light 6500k Anti Glare Treatment
CE long lifetime led canopy light 60w 150w high rack logistic hall lighting

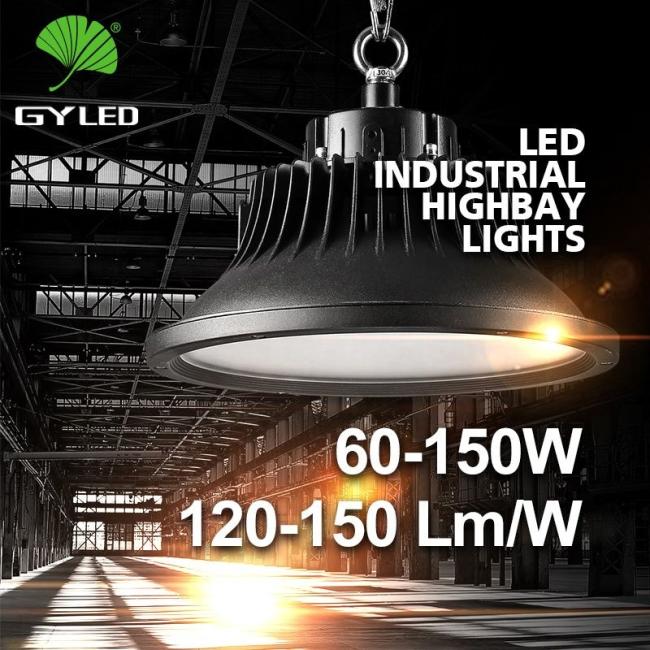

GY530GKII LED High Bay Light
Innovative Heat Solution Design, Anti-glare treatment,
High efficiency and energy-saving,
5 years warranty
Technical Datasheet
|
Parameter Items |
GY530Y290GKⅡXXX/220AC |
| Light source model | LED |
| Rated power | 60～150W |
| Input voltage | AC220V/50～60Hz |
| Power factor | ≥0.95 |
| Lighting efficiency | 120～150Lm/W |
| Color temperature | 3000K～5700K |
| CRI | Ra70(Or Ra80) |
| IP Grade | IP66 |
| Glass Grade | CLASS I |
| Working temperature | -40～50℃ |
| Surface treatment | Anti-corrosion spray |
| Anti-corrosion | Salt spray test passed |
| Fixed method | Bracket, boom (inch 4-inch thread), hook, ring |
| Product dimension | Φ350*210mm |
| Net weight | 4.7Kg |
| Carton dimension | 400*400*250mm |
| Pcs in carton | 1 |
| Fixture Power | Luminous Flux | Lighting Efficiency | Power Factor | Body Dimensions | Body Weight |
| 60W | 7200-10800LM | 120-150LM/W | ≥0.95 | Φ350*210mm | 4.7kg |
| 80W | 9600-12000LM | ||||
| 100W | 12000-15000LM | ||||
| 120W | 14400-18000LM | ||||
| 130W | 15600-19500LM | ||||
| 150W | 18000-22500LM |
FULL CIRCULATION DESIGN HEAT SINK
More blades for heat sink wider air interface.
Huitian brand thermal conductive silicone with high performance.
Energy-saving, prolong its lifespan.
* Groove design
* Long lifespan > 50,000hrs
* Low carbon lead-free
Advantages:
LED replacement for 200W 250W 400W HID fixtures
Energy-saving up to 80% than conventional HID systems
The luminous efficacy of light source over 135lm/w
Last 3 times longer than MHL or HID lamps
CCT range from 3000K to 5700K
Lifetime over 50,000 hours
5 years warranty
Lamps contain no lead or Mercury, ROHS compliant
Surge protection: 4KV
Suitable to use in enclosed fixtures.
