We supply two different LPG filling scales,barttery type lpg filling scale and power electronic type lpg filling scale.

There are some excellent performance for LPG filling scale.

1.The platform can be automatically reset.

2.The scale automatically cut-off when it reachs to setting amount.

3.It automatically records and saves filling information.(There is wireless data transfer device on the gas filling scale)

4.Different filling model can be supplied,total filling,net filling,standard filling.

5.Anti-cheating function:during filling process,if the platform weight decreases due to human intervention,the handle will automatically bounce and filling will be stopped.

6.Prevent excessive filling function.

and etc.

Detailed spare parts of LPG filling scale, including:

Soldenoid valve, power box, hanging barrel, tools, display, LPG pipes, cable pipes, support rod,

scale platform, scanner and holder, seals

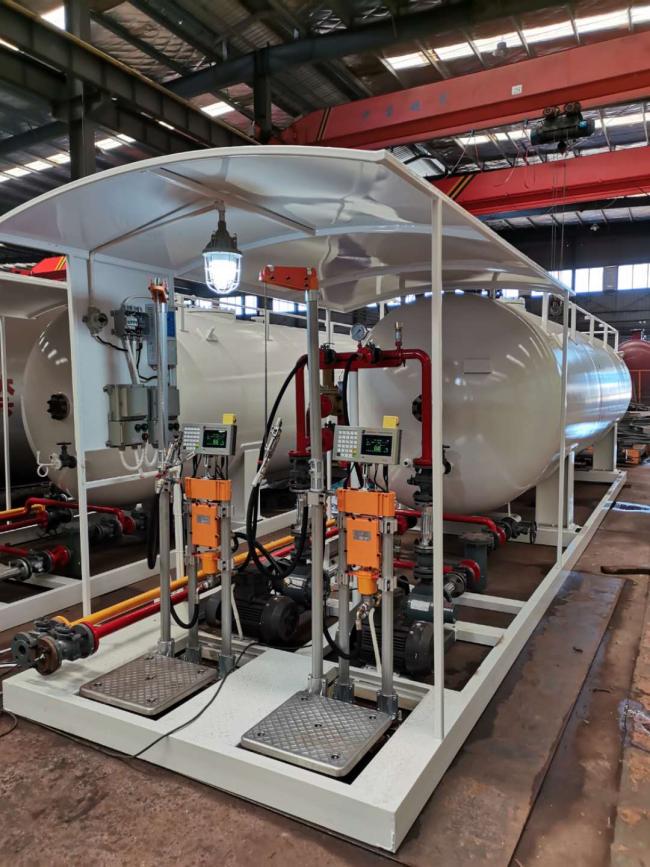

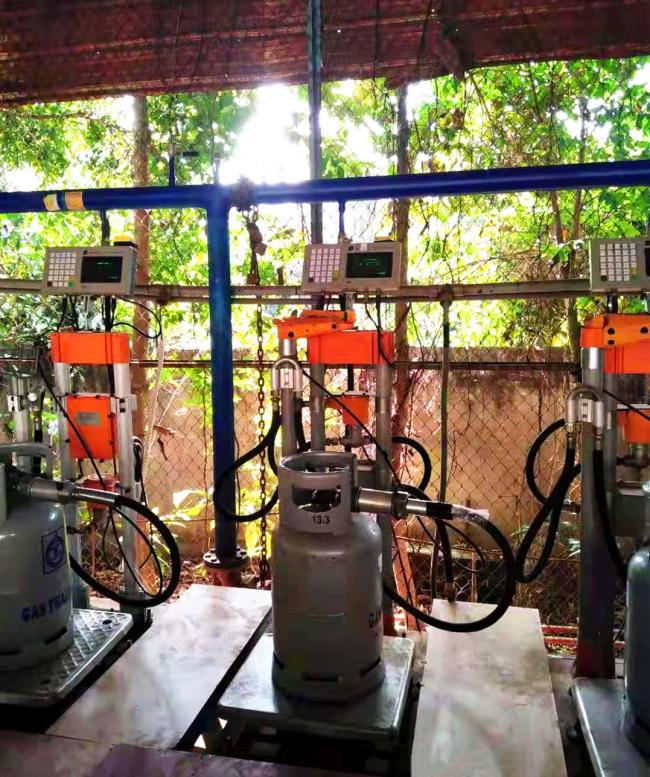

Case in Gas Station, operated well:

The process of filling:

1. Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)

2. Open the valve(pressure handle) and start filling

3. After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.

4. The software system updates in real time and uploads the filling data to the network platform.
