Aerial Outdoor 48 Cores Singlemode G652 ADSS Fiber Optic Cable With Aramid Yarn
Aerial 48 Cores singlemode G652 ADSS Fiber Optic Cable

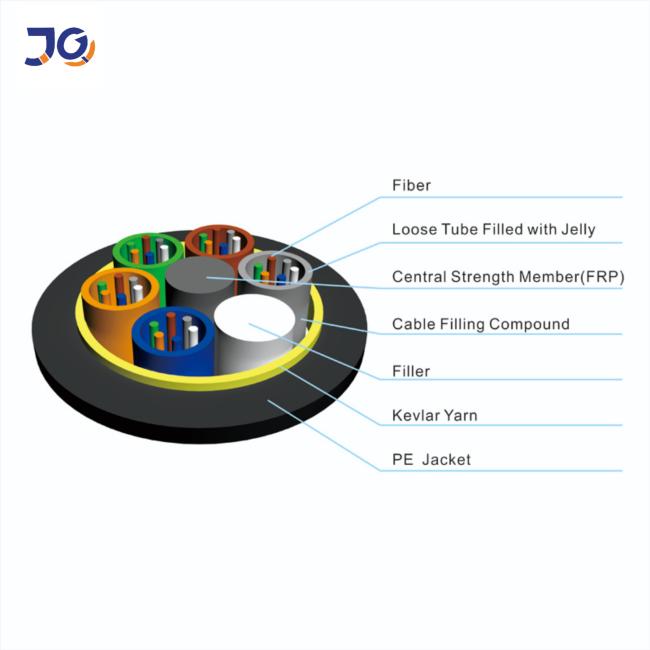

ADSS destricption
2.The tubes are filled with a water-resistant filling compound.
4.After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.
5.After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT(anti-tracking) outer sheath.
Features

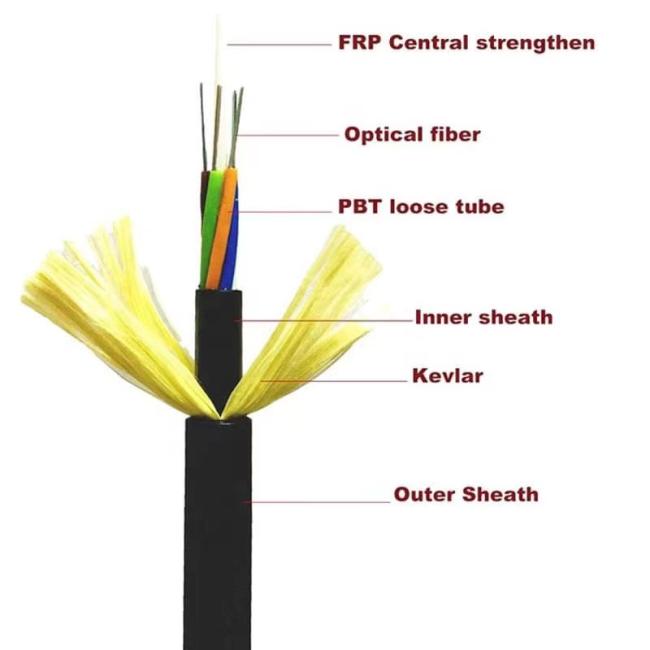

Details picture shows

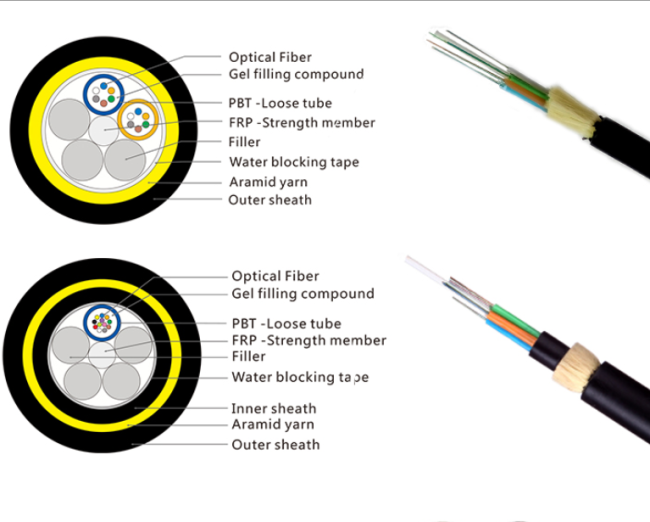

Structure and Technical Specifications
1. ADSS single jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.7 | 9.8±0.2 | 82 | 92 |
| 6 | 1+6 | 6 | 1.9±0.1 | 2.0/2.0 | 1.7 | 9.8±0.2 | 82 | 92 |
| 8 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.7 | 9.8±0.2 | 82 | 92 |
| 12 | 1+6 | 6 | 1.9±0.1 | 2.0/2.0 | 1.7 | 9.8±0.2 | 82 | 92 |
| 24 | 1+6 | 6 | 2.0±0.1 | 2.0/2.0 | 1.7 | 9.8±0.2 | 85 | 95 |
| 48 | 1+6 | 12 | 2.0±0.1 | 2.0/2.0 | 1.7 | 10.0±0.2 | 88 | 98 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.7 | 10.5±0.2 | 98 | 108 |
| 96 | 1+8 | 12 | 2.2±0.1 | 2.0/3.4 | 1.7 | 12.0±0.2 | 123 | 135 |
| 144 | 1+12 | 12 | 2.2±0.1 | 3.0/7.2 | 1.7 | 15.2±0.2 | 175 | 188 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.7 | 12.0±0.2 | 125 | 135 |
| 6 | 1+6 | 6 | 1.9±0.1 | 2.0/2.0 | 1.7 | 12.0±0.2 | 125 | 135 |
| 8 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.7 | 12.0±0.2 | 125 | 135 |
| 12 | 1+6 | 6 | 1.9±0.1 | 2.0/2.0 | 1.7 | 12.0±0.2 | 125 | 135 |
| 24 | 1+6 | 6 | 2.0±0.1 | 2.0/2.0 | 1.7 | 12.0±0.2 | 128 | 138 |
| 48 | 1+6 | 12 | 2.0±0.1 | 2.0/2.0 | 1.7 | 12.5±0.2 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.7 | 13.2±0.2 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2±0.1 | 2.0/3.4 | 1.7 | 14.5±0.2 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2±0.1 | 3.0/7.2 | 1.7 | 16.5±0.2 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type |
Attenuation (+20℃) |
Bandwidth |
Optical cable cut-off wavelength |
||||
|---|---|---|---|---|---|---|---|
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | --- |
Application: Self-supporting overhead
Packing:
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 10km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
