Outdoor Armored OS2 Single Mode Fiber Optic Cable 8 12 24 48 96 Cores
-
Outdoor Armored OS2 Single Mode Fiber Optic Cable 8 12 24 48 96 Cores
Fiber Optic G652D
-
Item Unit Specification Fiber Type G.652D Mode field diameter
1310nm μm 9.2±0.4 1550nm μm 10.4±0.8 Cladding diameter μm 125.0±1 Cladding non-circularity % ≤1.0 Core/cladding concentricity error μm ≤0.5 Coating diameter μm 245±5 Coating non-Circularity % ≤6.0 Coating/cladding concentricity error μm ≤12.0 Cable cut-off wavelength nm ≤1260 Attenuation Coefficient
1310nm dB/km ≤0.36 1550nm dB/km ≤0.22 Proof stress level kpsi ≥100

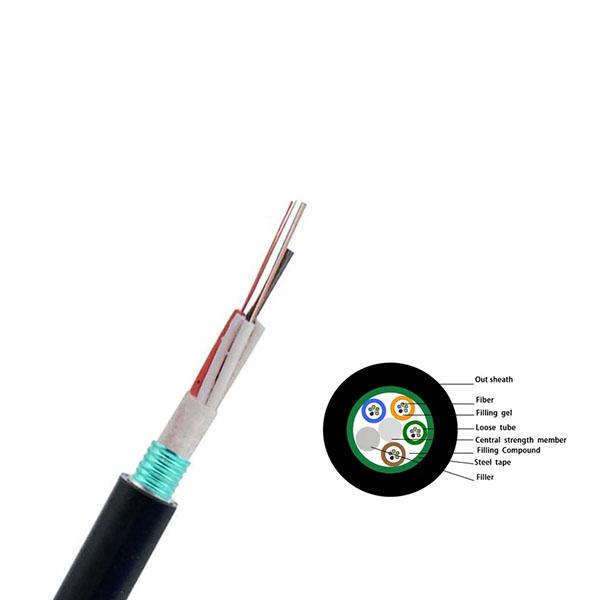

Cable performance:Item Parameters Fiber Count 24 No. of Fiber per tube
Dimension 250µm±15µm 6 fibers
Color Blue,Orange,Green,Brown,Gray,Natural Loose tube
Dimension 2.2±0.1mm Material PBT 4 tubes Blue,Orange,Green,Brown, Filler
Material PE Color Black Central Strength Member
Dimension 1.6mm Material Phosphating steel wire Armoured Material Plastic coated steel strip/Aluminium Outer jacket
Material PE Color Black ![]()
- Company profile:
- Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa ![]()
![]()
![]()
- Exhibition:
![]()
- Certification:
![]()
- FAQ:
-
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10years history.
2.What is your fiber brand ?
Jiqian
3.Do you provide samples?is it free or charged?Yes,samples are for free,just pay for freight
4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
5.What is your warranty period?
25-30 years for outdoor fiber optic cable
6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE
7.What is your delivery time?
Usually 5-7 working days
8.What is your payment way?
T/T, L/C, Western Union
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing. -
