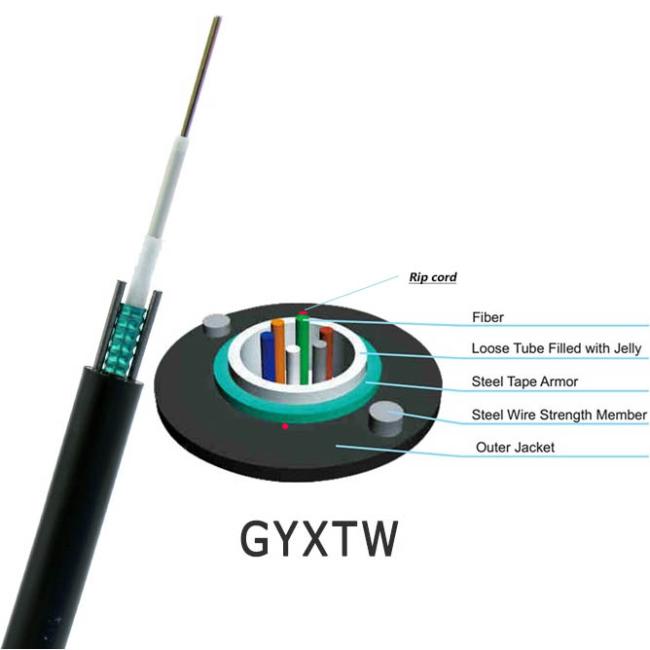

Good Quality GYXTW Armoured 4 8 12 Core Single Mode Fiber Optic Cable For Duct/Aerial installation
Good Quality GYXTW Armoured 4 8 12 Core Single Mode Fiber Optic Cable For Duct/Aerial installation
Fiber Optic Cable G652D
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.8 | |
| Cladding diameter | μm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | μm | ≤0.5 | |
| Coating diameter | μm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | μm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/ks | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |
Cable performance:
| Item | Parameter | |
| Fiber Count | 12 | |
| Colored coated fiber | Dimension | 250µm±15µm |
| Color | Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua | |
| Loose tube | Dimension | 2.2mm±0.1mm |
| Material | PBT | |
| Color | nature | |
| Filler | Material | none |
| Color | none | |
| Strength Member | Dimension | 0.7mm±0.05mm |
| Material | Phosphating steel wire | |
| Armoured | Material | Plastic coated steel strip |
| Outer jacket | Material | PE |
| Color | Black | |
Company profile:
1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world
FAQ:
Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you provide OEM or ODM
A: Yes
Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock
Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
