Underground Directly Buried Armored Cable Fiber Optic Cable GYTA53
Underground Directly Buried Armored Cable Fiber Optic Cable GYTA53

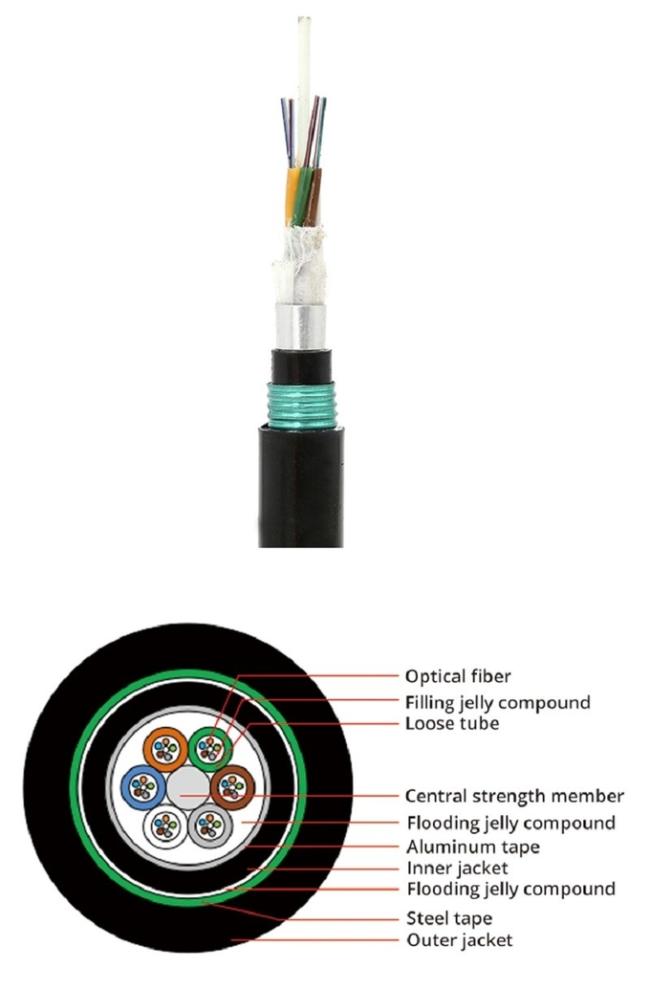

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with PE outer sheath.
Application
Suitable for directly buired laying method
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters

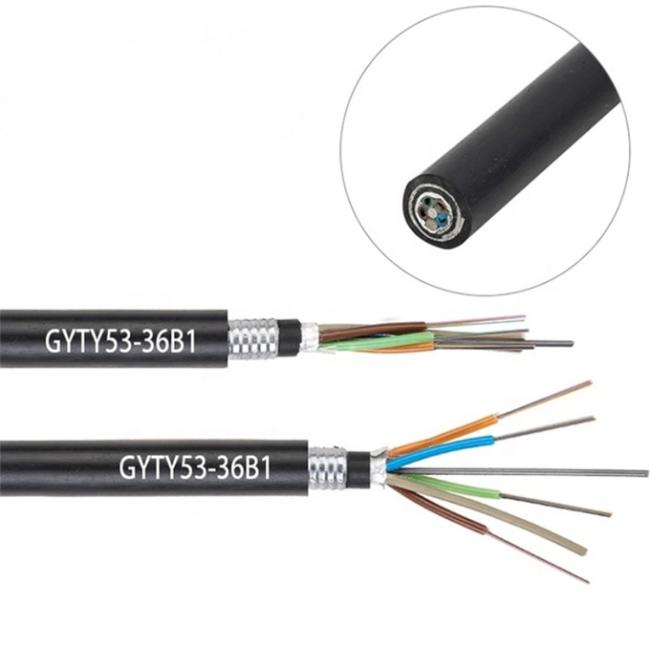

Product show
Packing
1/2/3/4km or customized length export wooden drum
1. Factory Directly Supply Price.
2. Life Time Warranty:More 25years
3. Fastest Delivery Time: 1 days for Samples, 3-15 days for bulk production.
4. 100% test before shipping.
5.OEM/ODM is available.
6. Professional manufacturer. Welcome to visit our factory!
