GYTA53 Outdoor Fiber Optical Cable Stranded Double Jackets Armored Cable
GYTA53 Outdoor fiber optical cable Stranded Double Jackets Armored Cable
Product Description

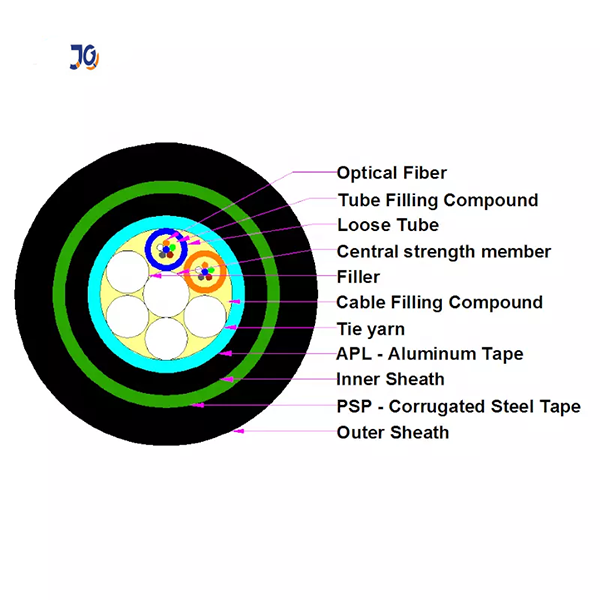

GYTA53 Cable is Moisture-proof and rodent-proof cable, fibers are housed in loose tubes that are made of high-modulus plastic. The tubes are stranded around a central strength member to form a cable core. Two layer tape, Aluminium tape+Coated steel tape , then PE as outer Jacket.
- Application: Duct / underground/Direct buried
- Standard : YD/T 901-2001 and IEC 60794-1
- Has good mechanical properties and temperature characteristics.
- The loose tube material itself has good hydrolysis resistance and high strength.
- The tube is filled with a special ointment to provide critical protection for the fiber.
- Good compression resistance and softness.
- Single metal center reinforcement.
- The loose tube is filled with special waterproof compound.
- Complete core filling.
- Plastic coated aluminum tape (APL) moisture barrier.
- Double-sided plastic-coated steel tape (PSP) improves the moisture resistance of theoptical cable.
- Good water blocking material to prevent longitudinal water seepage of the optical cable.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-24 | 12.0 | 180 |
10 times Diameter
|
20 Times
|
1000 | 3000 | 1000 | 3000 |
| 26-36 | 12.2 | 195 | 1000 | 3000 | 1000 | 3000 | ||
| 38-60 | 12.5 | 205 | 1000 | 3000 | 1000 | 3000 | ||
| 62-72 | 12.8 | 225 | 1000 | 3000 | 1000 | 3000 | ||
| 74-96 | 13.5 | 245 | 1000 | 3000 | 1000 | 3000 | ||
| 98-120 | 14.4 | 275 | 1000 | 3000 | 1000 | 3000 | ||
| 122-144 | 16.5 | 315 | 1000 | 3000 | 1000 | 3000 | ||
Product showes
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
