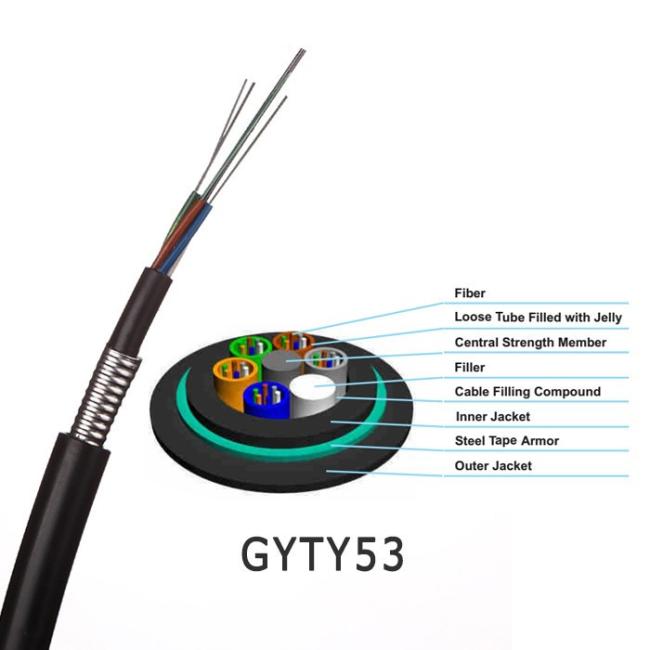

GYTY53 Double Jacket Armored Anti - Rodent Fiber Optic Cable
GYTY53 Double Jacket Armored Anti-rodent Fiber Optic Cable
1. Direct burial
2. Underground
3. Backbone Internet
Optical Characteristics
|
|
|
G.652D |
50/125um |
625/125μm |
|
Attenuation |
@850nm |
|
≤3.0dB/km |
≤3.0dB/km |
|
(+20°C) |
@1300nm |
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
|
|
|
Bandwidth(ClassA) |
@850nm |
|
2500MHzkm |
2200MHz:km |
|
|
@1300nm |
|
21000MHz-km |
2600MHzkm |
|
NumericalAperture |
|
|
0.200+0.015NA |
0.275+0.015NA |
|
CableCut- offWavelengthλcc |
|
≤1260nm |
|
|
Technical Data
|
Fiber count |
Nominal Diameter(mm) |
Nominal weight(kg/km) |
Max Fibers per Tube |
No.of (Tube+fillers) |
AllowableTensile Load (N/100mm) |
Allowable Crush Resistance(N/100mm) |
||
|
short Term |
long term |
short Term |
long term |
|||||
|
2~36 |
10.2 |
125 |
12 |
6 |
3000 |
1000 |
3000 |
1000 |
|
36~72 |
15.1 |
212 |
12 |
6 |
3000 |
1000 |
3000 |
1000 |
|
74~96 |
16.3 |
246 |
12 |
8 |
3000 |
1000 |
3000 |
1000 |
|
98~120 |
17.8 |
288 |
12 |
10 |
3000 |
1000 |
3000 |
1000 |
|
122~144 |
19.4 |
336 |
12 |
12 |
3000 |
1000 |
3000 |
1000 |
|
>144 |
Design according to the customer request |
|||||||
