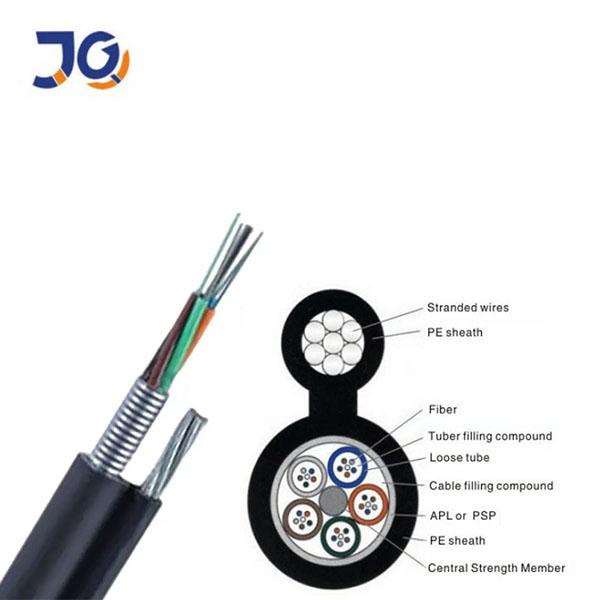

Self Supporting Aerial Figure 8 GYTC8Y GYTC8S 24/48/96 Core Fiber Optic Cable
-
Self-supporting Aerial Figure 8 GYTC8Y 24/48/96core Factory wholesale Fiber Optic Cable
Fiber Optic G652D
-
Parameter Specification MFD (1310nm) 9.2±0.4 um MFD (1550nm) 10.4±0.8 um Cladding diameter 125±1.0um Fiber diameter 235~255um, with UV coating, and colored to : 250±15um Core/cladding concentricity error ≤ 0.5um Coating/cladding concentricity error ≤ 12.0um Cladding non circularity ≤ 1.0% Cut off wavelength λcc ≤1260nm Attenuation coefficient
1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after cabling
Bending-loss performance of optical fiber @1310nm&1550nm
≤0.05dB (100 turns around a mandrel of 50mm diameter)
Polarization mode dispersion maximum individual fibre ≤0.2ps/√km
Polarization mode dispersion link value ≤0.1ps/√km Zero-dispersion wavelength 1300~1324nm Zero-dispersion slope ≤0.092ps/nm2·km Cable performance:
Item Parameters Fiber Count 48 Colored coated fiber Dimension 250µm±15µm Color Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua Loose tube Dimension 2.2mm±0.1mm Material PBT Color Blue,Orange,Green,Brown Armoured Material steel tape Strength Member Dimension 3.0mm (7*1.0mm) Material Stranding steel wire Outer jacket Material HDPE Color Black ![]()
- Certification:
![]()
- Company profile:
- Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa ![]()
![]()
- Exhibition:
![]()
- FAQ:
-
1,Q:Are you a factory or trade company?
A:We are a factory,which is in Guangzhou,China
A:The MOQ of Fiber Optic cable is 1km.
2,Q:What is the MOQ?3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available
5,Q:What’s delivery time?
A:The usually delivery time is 5-7 days after order confirmed. It depends on the order quantity.6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
-
