ADSS Span 50m 48 96 Core Aerial Fiber Optic Cable 1km
Technical Data:
|
Cable fiber count |
/ |
2~30 |
32~60 |
62~72 |
|||
|
Structure |
/ |
1+5 |
1+5 |
1+6 |
|||
|
Fiber style |
/ |
G.652D |
|||||
|
Central strength member |
material |
mm |
FRP |
||||
|
Diameter (average) |
1.5 |
1.5 |
2.1 |
||||
|
Loose Tube |
Material |
mm |
PBT |
||||
|
Diameter (average) |
1.8 |
2.1 |
2.1 |
||||
|
Thickness(average) |
0.32 |
0.35 |
0.35 |
||||
|
Max fiber/loose tube |
6 |
12 |
12 |
||||
|
Tubes color |
Full color identification |
||||||
|
Fiber excess length |
% |
0.7~0.8 |
|||||
|
Water resistance |
Material |
/ |
Cable jelly |
||||
|
Inner sehath |
material |
mm |
MDPE |
||||
|
Inner sheath |
0.9mm |
||||||
|
Non-metallic strengthen components |
Material |
/ |
Aramid Yarn |
||||
|
Outer sheath |
material |
mm |
MDPE |
||||
|
Outer sheath |
1.8mm |
||||||
|
Cable diameter(average) |
mm |
10.9 |
11.5 |
12.1 |
|||
|
Cable weight (Approximate) |
kg/km |
95 |
110 |
120 |
|||
|
Cable Sectional area |
mm2 |
93.31 |
103.87 |
114.99 |
|||
|
Attenuation coefficient(Max) |
1310nm |
dB/km |
0.35 |
||||
|
1550nm |
0.21 |
||||||
|
Rated Tensile Strength(RTS) |
kn |
6 |
|||||
|
Max allowed tension( MAT) |
kn |
2.5 |
|||||
|
Annual average operating tension (EDS) |
kn |
3.2 |
|||||
|
Young's modulus |
kn/mm2 |
7.8 |
|||||
|
Coefficient of thermal expansion |
10-6/℃ |
9 |
|||||
|
Crush resistance |
Long term |
N/100mm |
1100 |
||||
|
Short term |
2200 |
||||||
|
Permission Bent Radius |
static |
mm |
15 of OD |
||||
|
dynamic |
20 of OD |
||||||

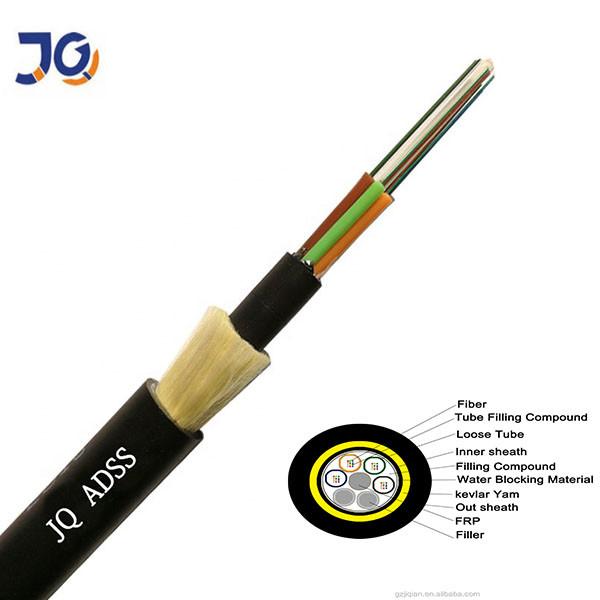

ADSS Double Jacket :

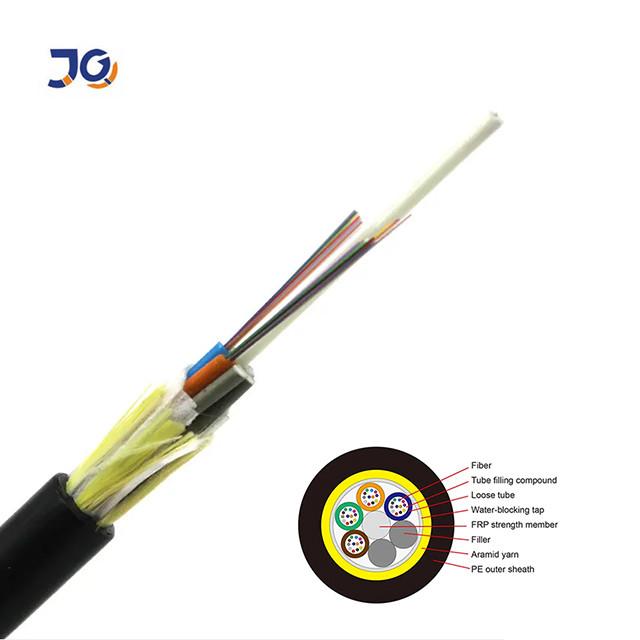

Single Jacket ADSS Span 100m :

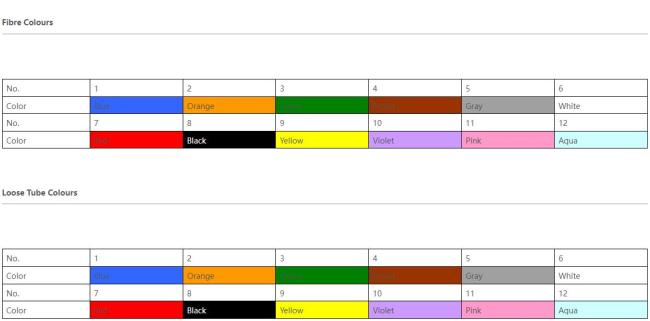

Fiber Color and Loose tube Color , You can choose what you like or according national standred .
Product Features Comparion with other Supplier :

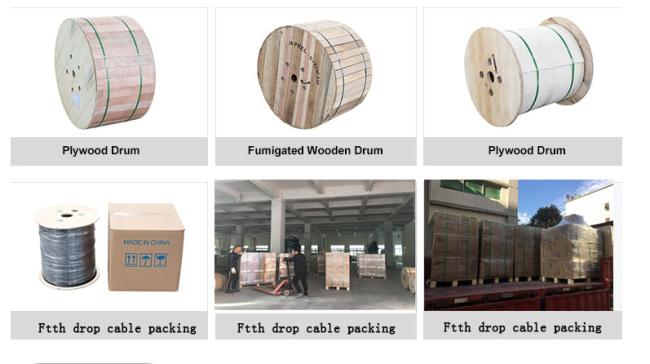

Packing details:
1.1-3km/wooden reel,other lengths of the cable are also available as per the buyer's requirements
1.One wooden reel of the cable packed in a carton
The time of shipping:1-500km will be shipped in eight days,above 500km can be negotiated about
Company Profile :
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
7.Which brand of fiber do you use?
Corning,YOFC,Fiberhome,etc
