Optic Fiber Cable Single Mode 24 Core ADSS Span 100m Fiber Optic Cable
ADSS cable is a type of fiber optic cable that is strong enough to support itself between structures without containing conductive metal elements. Both single mode and multimode fibers can be arranged in ADSS cables with a maximum of 288 fibers. ADSS fiber optic cable is designed for outside plant aerial and duct applications in local and campus network loop architectures from pole-to-building to town-to-town installations. The cabling system that includes cables, suspension, dead-end, and termination enclosures offers a comprehensive transmission circuit infrastructure with high-reliability performance. Jiqian's ADSS fiber cable has the characteristics of full dielectric, no metal, non-conductivity, small cable diameter, high tensile force, low linear expansion coefficient, and wide temperature adaptation.
Fiber parameter
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.00 dB/km | ≤0.00 dB/km | |||
| @1550nm | ≤0.00 dB/km | ≤0.00 dB/km | |||
| Bandwidth(Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥500 MHz·km | ≥500 MHz·km | |||
| Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cutoff Wavelength | ≤1260nm | ≤1480nm | |||
Fiber color code:
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Colour | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Colour | Red | Black | Yellow | Yellow | Pink | Aqua |
Packing: plywood drum 2/3/4/5 one drum or as your requirement
Delivery:By sea/road/train
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 12 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
Exhibition
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the freight
3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001/CE/ROHS/FCC
6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment method?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements

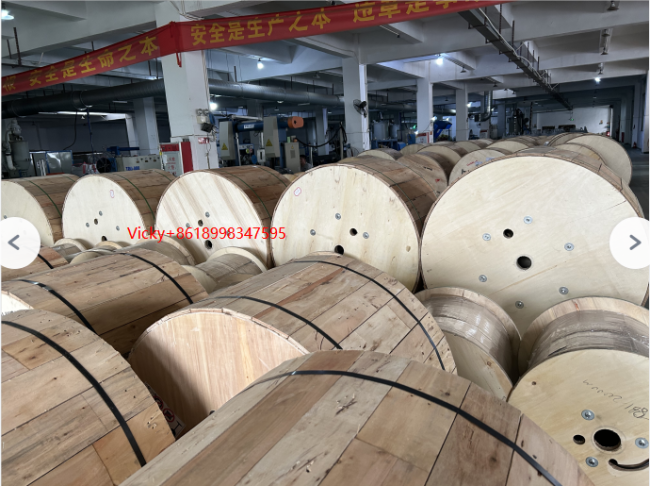

Welcome to visit our factory
Contact me at +8618998347595 to get free sample
