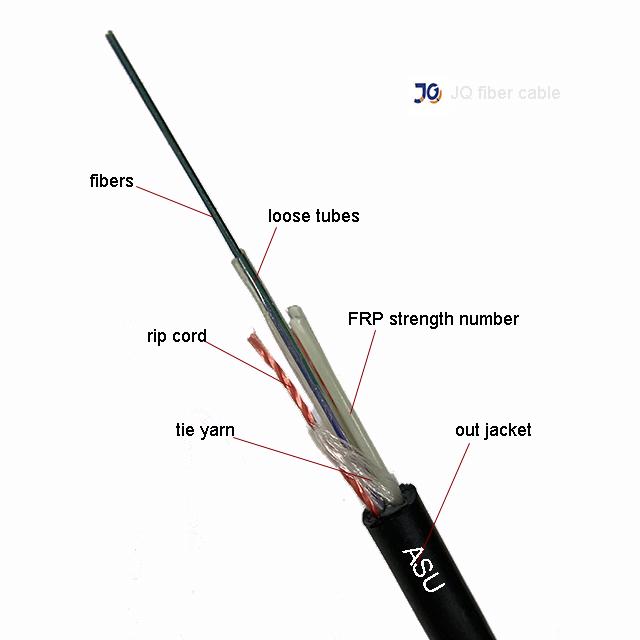

Aerial 12 Core Non-metal Mini ADSS Fiber Cable 6 Hilos Cable
Fiber optic G652D:
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | £1.0 | |
| Core/cladding concentricity error | mm | £0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | £6.0 | |
| Coating/cladding concentricity error | mm | £12.0 | |
| Cable cut-off wavelength | nm | £1260 | |
| Attenuation Coefficient | 1310nm | dB/km | £0.36 |
| 1550nm | dB/km | £0.22 | |
| Proof stress level | kpsi | ≥100 | |
Packing&Delivery:
2km/3km/4km per wooden drum or customized
Delivery: LCL/FCL,It depends on order quantity
Port:Shenzhen/Guangzhou
Lead time:
| Quantity(km) | 100-200 | >200 |
| Est time(day) | 3-5 days | negotiable |

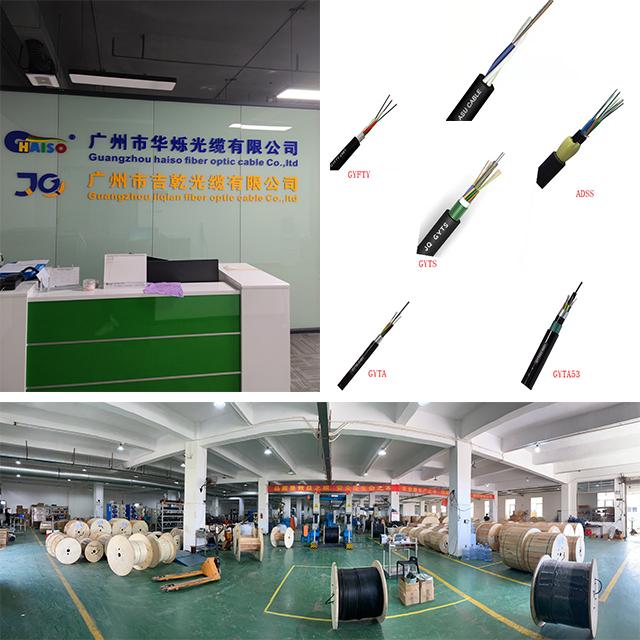

Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for more than 10 years, exported cable for almost 7 years with ISO9001, FCC, ROHS and CE certificates and import and export license. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as America, Europe, Mideast and Southeast Asia.
FAQ:
1.Are you the real manufacturer?
Yes. We are the real manufacturer over 10years history.
2.What is your fiber brand ?
YOFC/Fiberhome
4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
5.What is your warranty period?
25-30 years for outdoor fiber optic cable
6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE
7.What is your delivery time?
Usually 5-7 working days,it depends on order quantity
8.What is your payment way?
T/T, L/C, Western Union
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
