2 4 6 8 12 core Outdoor Fiber Optic Cable GYXY Non-armored Cable
Product Description:

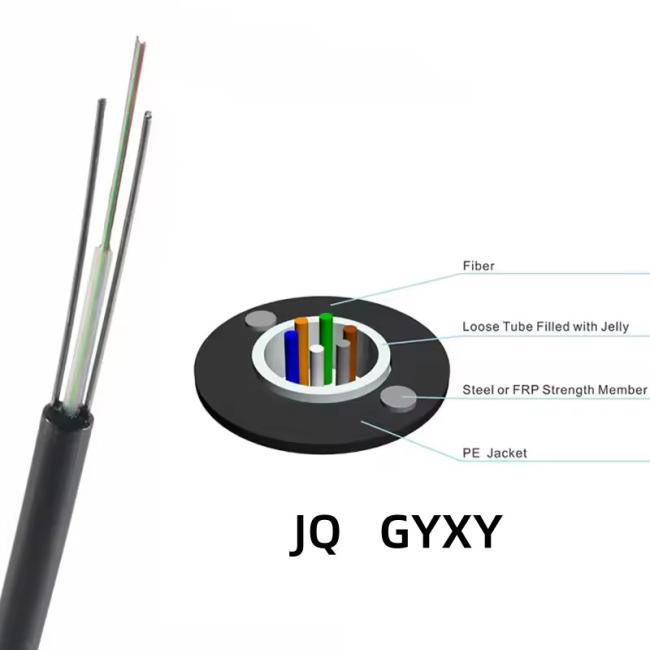

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.
Features:
■Good mechanical and temperature performance.
■High strength loose tube that is hydrolysis resistant.
■Special tube filling compound ensure a critical protection of fiber.
■rush resistance and flexibility.
■Two parallel steel wires ensure tensile strength.
■PE sheath protects cable form ultraviolet radiation.
■Small diameter, light weight and friendly installation.
Application:
■Usable in Duct / Aerial.
■Suitable for communication between bureaus, metropolitan network, access network
■especially suitable for the situation where high-density fibers is expected.
Specification:
| item | value |
| Model Number | GYXY |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangzhou,China |
| Brand Name | Haiso/jiqian |
| Structure | uni-tube non armored |
| Number of Conductors | ≥ 10 |
| Fiber type | G652.D |
| Fiber | single mode |
| Filling compound | Jelly |
| Tube | Central loose tube |
| Loose tube | PBT |
| strength member | steel wire |
| Material of jacket | PE |
| Color | Customized |
| Package | Fumigation free wooden drum/Customized |
| Operating/Storage Temperature | - 40 ~ 70 ℃ |
| Application | Outdoor aerial and duct |
| Use | FTTX |
| Certificate | CE/ROHS/ISO9001 |
Optical Characteristics:
| 50/125μm | 62.5/125μm | |
| G.652D | ||
| Attenuation (+20℃) | @850nm | |
| @1300nm | ||
| @1310nm | ≤0.34 dB/km | |
| @1550nm | ≤0.21 dB/km | |
| Bandwidth (Class A) | @850nm | |
| @1300nm | ||
| Numerical Aperture | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |
