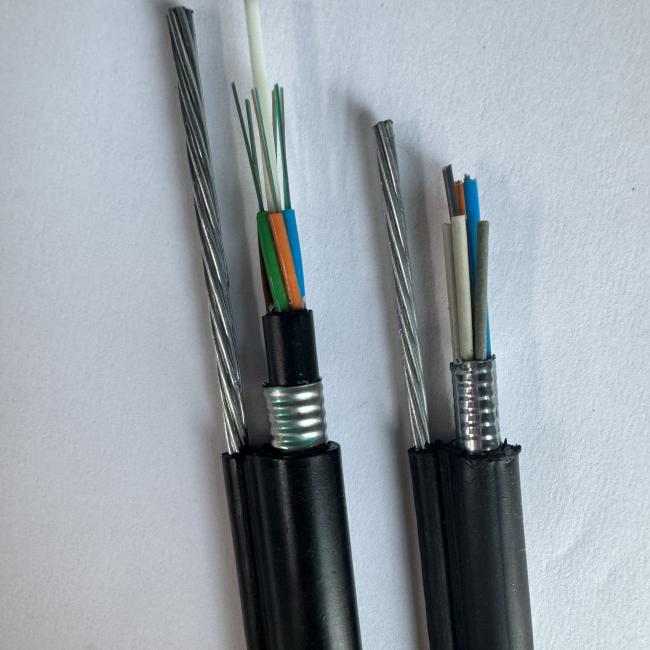

Outdoor Overhead Optical Fiber Figure 8 APL Armored Cable GYTC8A GYFTC8A
Product Description
2.Fiber : G652D
3.Installation : self- supporting Aerial
4. Application : Apply to Long distance communication system, Local area network system
5. Lifetime : above 30 years
6. Operating temperature : -40℃~+70℃
7. Permisson bent radius Static : 10 times O.D.
8.Dynamic : 20 times O.D.
Characteristics:
* High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
* Good mechanical and temperature performance.
* High strength loose tube that is hydrolysis resistant.
* Special tube filling compound ensure a critical protection of fiber. The following measures are taken to ensure the cable watertight:
* FRP or mental used as the central strength member
* Loose tube filling compound
* Suitable for aerial.
* Long distance and local area network communication.
Optical Characteristics:
| G.655 | 50/125μm | 62.5/125μm | ||
| G.652 | ||||
| Attenuation | '@850nm | ≤3.0 dB/km | ||
| (+20℃) | '@1300nm | ≤1.0 dB/km | ||
| '@1310nm | ≤0.34 dB/km | ≤0.40 dB/km | ||
| '@1550nm | ≤0.21 dB/km | ≤0.23 dB/km | ||
| '@850nm | ≥500 MHz·km | |||
| '@1300nm | ≥1000 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | |||
Technical parameters:
| Items | Unit | Specifications |
| Tension(Long Term) | N | 600 |
| Tension(Short Term) | N | 1500 |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ºC | -20~+60 |
| Operating Temperature | ºC | -40~+70 |
| Storage Temperature | ºC | -40~+70 |
