2-144 Cores Flame Retardant Mining Fiber Optical Cable MGTSV
Product Description:
Unitube Mining Falme-retardant Cable:

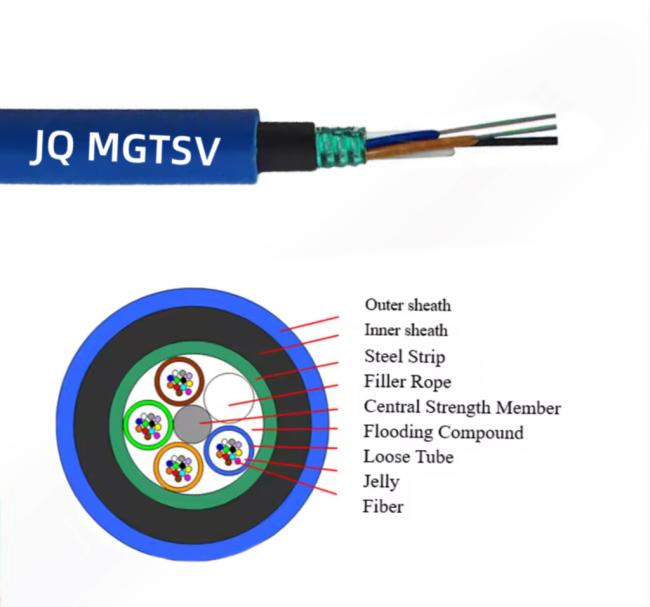

The structure of MGTSV fiber cable is by inserting a 250μm fibers into a loose tube made of a high-modulusmaterial filled with a waterproof compound. The center of the MGTSV is a steel wire as a metal strength member. The loose tube (and the filling rope) is twisted around the center strength member to form a compact and round cable core. The MGTSV optical fiber cable use for coal mine with armored-steel tape and double PE jacket.
Characteristics:
· Blue flame retardant PVC sheath, with good flame retardant characteristics;
· Anti-tensile, anti-wear, anti-flattening, anti-impact, repeated bending, twisting, bending (bending Angle not exceeding 90°), shooting, etc., with good mechanical properties;
· Stable temperature cycle, complete sheath, anti-seepage water drip, flame retardant and other good environmental performance;
· Precisely controlled fiber length and cable stranding pitch ensure excellent tensile properties and temperature characteristics of the cable;
· Life expectancy is greater than 30 years.
· Light weight, small cable length, small load on the pole.
Application:
■Adapted to Outdoor distribution.
■Suitable for aerial pipeline laying method.
■Long-distance telecom, LAN in high-voltage area or access to telecom network.
■Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
■Recommended layings methods: High-voltage area, Aerial.
| item | value |
| Model Number | MGTSV |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose Tube Material | PBT |
| Armoured | Steel tape |
| Outer Sheath | LSZH LSOH PE MDPE |
| Cable Structure | Multi-Loose Tube Steel Tape armor |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Installation | aerial, in duct |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
Optical Characteristics:
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation | @850nm | ≤3.0dB/km | ≤3.3dB/km | ||
| (+20℃) | @1300nm | ≤1.0dB/km | ≤1.0dB/km | ||
| @1310nm | ≤0.34dB/km | ≤0.40dB/km | |||
| @1550nm | ≤0.21dB/km | ≤0.23dB/km | |||
| Bandwidth | @850nm | ≥500MHZ·km | ≥200MHZ·km | ||
| @1300nm | ≥500MHZ·km | ≥500MHZ·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off | ≤1260nm | ≤1450nm | |||
| Wavelength λcc |
| cable countr | out sheath diameter | Weight | Minimum allowable Tensile strength(N) | Minimum | Min bending radius(MM) | |||
| (MM) | (KG) | allowable Crush load(N/100mm) | ||||||
| Short term | Long term | Short term | long Term | short term | long Term | |||
| 2-36 | 12.8 | 170 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 38-72 | 14.2 | 212 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 74-96 | 15.7 | 245 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 98-120 | 17.3 | 289 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 122-144 | 18.8 | 328 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
