ADSS Aerial Fiber Cable Cable 24 48 Core Outdoor Fiber Optic Cable
Price:
Negotiable
MOQ:
1km
Delivery Time:
2-4days
Brand:
jiqian
Product Description

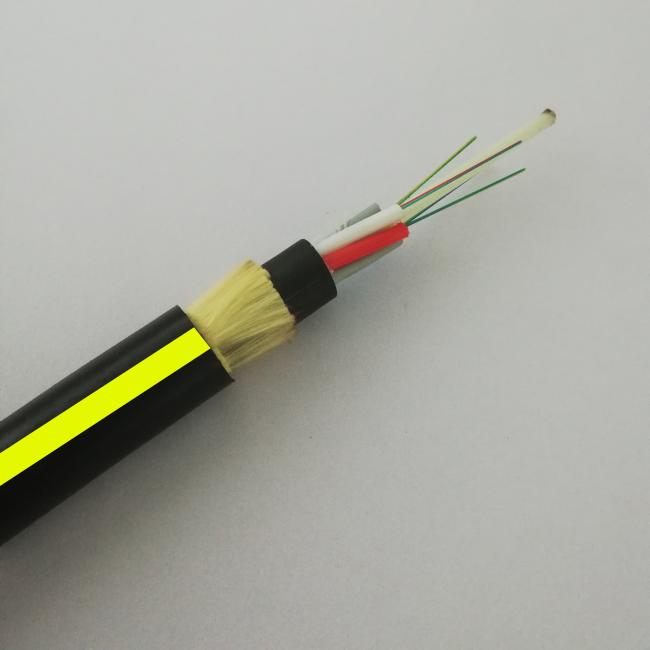

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is filled with filling gel to protect it from water ingress. The kevlar yarn surrounded the cable core as the reinforce strength member, then the cable is completedwith a PE sheath.
Can support Customize Color Yellow Span100m-800m
Cable Paremeter:
Technical Data:
|
Cable fiber count
|
/
|
2~30
|
32~60
|
62~72
|
|||
|
Structure
|
/
|
1+5
|
1+5
|
1+6
|
|||
|
Fiber style
|
/
|
G.652D
|
|||||
|
Central strength member
|
material
|
mm
|
FRP
|
||||
|
Diameter (average)
|
1.5
|
1.5
|
2.1
|
||||
|
Loose Tube
|
Material
|
mm
|
PBT
|
||||
|
Diameter (average)
|
1.8
|
2.1
|
2.1
|
||||
|
Thickness(average)
|
0.32
|
0.35
|
0.35
|
||||
|
Max fiber/loose tube
|
6
|
12
|
12
|
||||
|
Tubes color
|
Full color identification
|
||||||
|
Fiber excess length
|
%
|
0.7~0.8
|
|||||
|
Water resistance
|
Material
|
/
|
Cable jelly
|
||||
|
Inner sehath
|
material
|
mm
|
MDPE
|
||||
|
Inner sheath
|
0.9mm
|
||||||
|
Non-metallic strengthen components
|
Material
|
/
|
Aramid Yarn
|
||||
|
Outer sheath
|
material
|
mm
|
MDPE
|
||||
|
Outer sheath
|
1.8mm
|
||||||
|
Cable diameter(average)
|
mm
|
10.9
|
11.5
|
12.1
|
|||
|
Cable weight (Approximate)
|
kg/km
|
95
|
110
|
120
|
|||
|
Cable Sectional area
|
mm2
|
93.31
|
103.87
|
114.99
|
|||
|
Attenuation coefficient(Max)
|
1310nm
|
dB/km
|
0.35
|
||||
|
1550nm
|
0.21
|
||||||
|
Rated Tensile Strength(RTS)
|
kn
|
6
|
|||||
|
Max allowed tension( MAT)
|
kn
|
2.5
|
|||||
|
Annual average operating tension (EDS)
|
kn
|
3.2
|
|||||
|
Young's modulus
|
kn/mm2
|
7.8
|
|||||
|
Coefficient of thermal expansion
|
10-6/℃
|
9
|
|||||
|
Crush resistance
|
Long term
|
N/100mm
|
1100
|
||||
|
Short term
|
2200
|
||||||
|
Permission Bent Radius
|
static
|
mm
|
15 of OD
|
||||
|
dynamic
|
20 of OD
|
||||||
Long Span ADSS Double Jacket Fiber Cable Up To 800m Span
Fiber Type:G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options
Span: 100-800m
Application: Self-support Aerial installation
Standards:ADSS Fiber Optical Cable complies with IEEE 1222, IEC 60794-4-20, ANSI/ICEA S-87-640, TELCORDIA GR-20, IEC 60793-1-22, IEC 60794-1-2, IEC 60794
Packing details:
1.1-3km/wooden reel,other lengths of the cable are also available as per the buyer's requirements
1.One wooden reel of the cable packed in a carton
The time of shipping:1-500km will be shipped in eight days,above 500km can be negotiated about

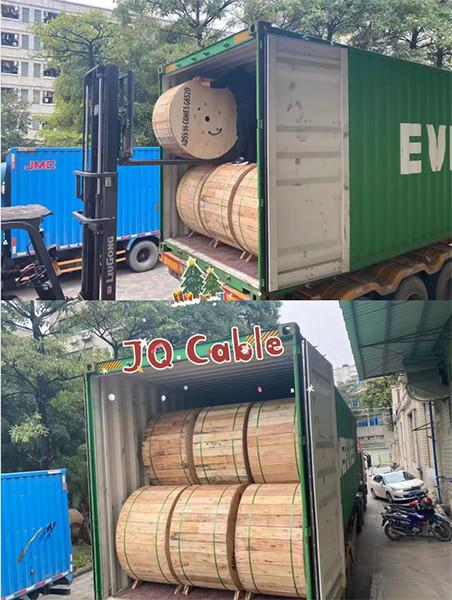

Delivery to Kenya 40HQ Container :
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
7.Which brand of fiber do you use?
Corning,YOFC,Fiberhome,etc
