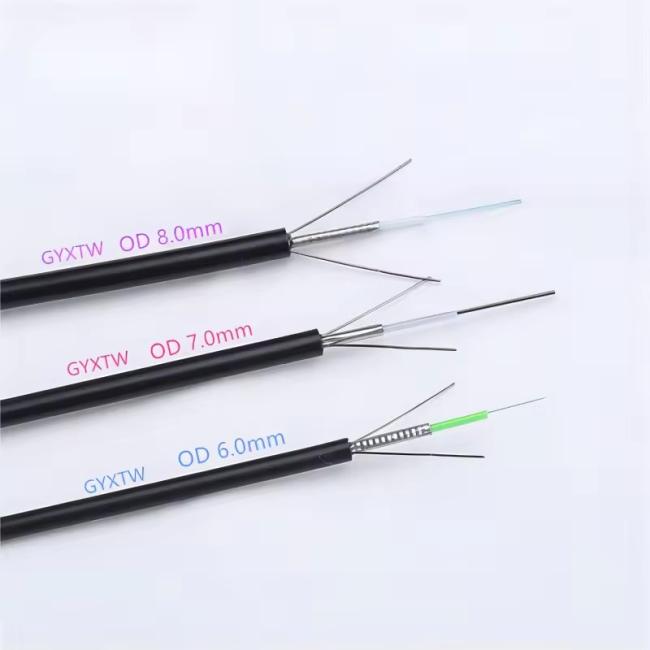

Customized GYXTW Armored 2 4 6 8 12 24 Core Single Mode Fiber Optic Cable 6mm 7mm 8mm With Messenger
Customized GYXTW armored 2 4 6 8 12 24 core single mode fiber optic cable 6mm 7mm with messenger
&Single mode Fiber
&Loose Tube Filled with Jelly
&Steel Tape Armor
&Steel Wire Strength Member
&PE Jacket
Cable structure and parameter
| Fiber count |
Outer diameter |
Steel wire diameter |
Min.Bending Radius (Dynamic/Static) |
Max.Crush Resistance | Weight (approx.) |
| mm | mm | D | N/100mm² | kg/km | |
| 2,4,6,8 | 8.3 | 1.0 | 20/10 | 3000 | 66 |
| 10,12 | 9.0 | 1.0 | 20/10 | 3000 | 82 |
Fiber parameter
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
|
Mode field diameter |
1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | mm | ≤0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | mm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
|
Attenuation Coefficient |
1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |
FAQ:
1. Who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. What services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
