Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC
Price:
Negotiable
MOQ:
1km
Delivery Time:
3-5 dyas
Brand:
JQ/OEM
Product Description
Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC
|
|
1.Used in outdoor applications that require both optical fiber and copper wire elements for communication and power
|
|
|
2.Copper wire can power remote electronics used in fiber optic communications
|
||
|
3.Copper wire can also be used for low data rate data transmission
|
||
|
4.Deployable cables have been used in network and private broadcast applications around the world
|
||
|
5.Cables can be designed for your custom applications
|
||
|
Standards:
|
YD/T 901 / IEC 60794-3-10
|
|
|
Temperature Range:
|
Transportation:
|
-40℃~+70℃
|
|
Installation:
|
5℃~+50℃
|
|
|
In use:
|
In use:-40℃~+70℃
|
|
Optical Characteristics
| Item | Specification |
| Fiber type | G.652D |
| Attenuation | |
| @ 1310 nm | ≤0.36 dB/km |
| @ 1383 nm | ≤0.35 dB/km |
| @ 1550 nm | ≤0.22 dB/km |
| @ 1625 nm | ≤ 0.30 dB/km |
| Cable Cut-off Wavelength(λcc) | ≤1260 nm |
| Zero Dispersion Wavelength(nm) | 1300 ~ 1324 nm |
| Zero Dispersion Slope | ≤0.092 ps/(nm2.km) |
| Chromatic Dispersion | |
| @ 1288 ~ 1339 nm | ≤3.5 ps/(nm. km) |
| @ 1550 nm | ≤18 ps/(nm. km) |
| @ 1625 nm | ≤22 ps/(nm. km) |
| PMDQ | ≤0.2 ps/km1/2 |
| Mode Field Diameter @ 1310 nm | 9.2±0.4 um |
| Core Concentricity Error | ≤0.6 um |
| Cladding Diameter | 125.0±0.7 um |
| Cladding Non-circularity | ≤1.0% |
| Coating Diameter | 245±10 um |
| Proof Test | 100 kpsi (=0.69 Gpa), 1% |

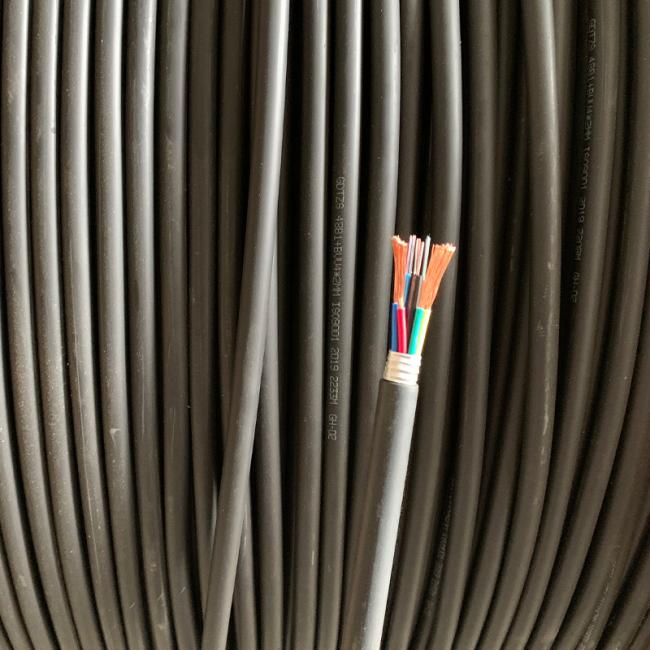

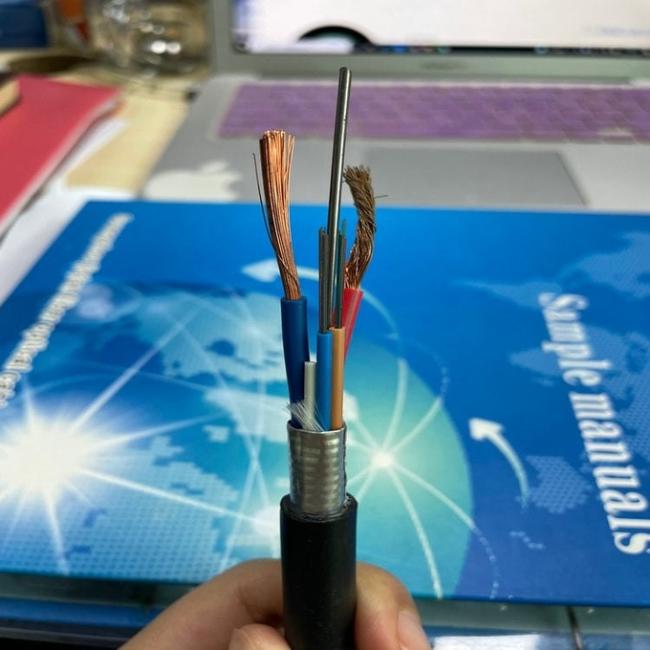

Product Image

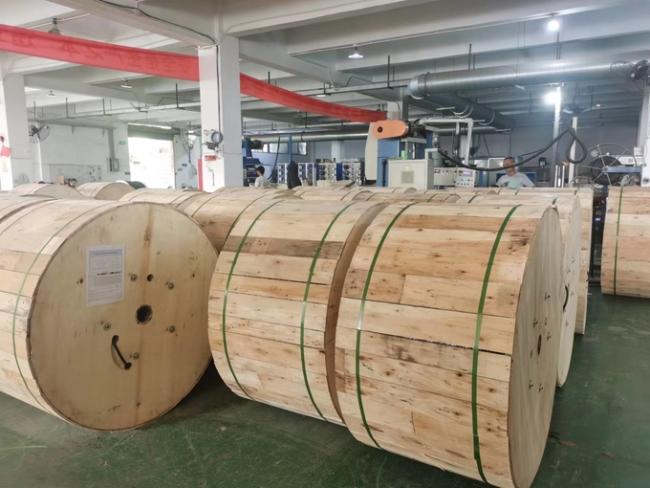

Packing&Delivery
1/2/3/4/km in one wooden drum,deliver days:3-7work days
OPLC, GDTS, Photoelectric composite cable,Hybrid fiber optic cable with power copper wire, welcome to inquiry!!
