Outdoor 48 Core Single Mode Aerial Duct Armored GYTA Fiber Optic Cable
GYTA FIBER OPTIC CABLE
MODEL: GYTA-48B Fiber: SM G652D
Armoured: PSP AL Tape Jacket Diameter: 10.50mm
Jacket Material:HDPE/PE Cable Length: 3Km/Drum
Simple Specification:
Insertion Loss: ≤0.32dB Return Loss: ≥50dB
Durability: ≤0.20dB Test Wavelength: 1310/1550nm
Operation Temperature: -20℃ to +60℃

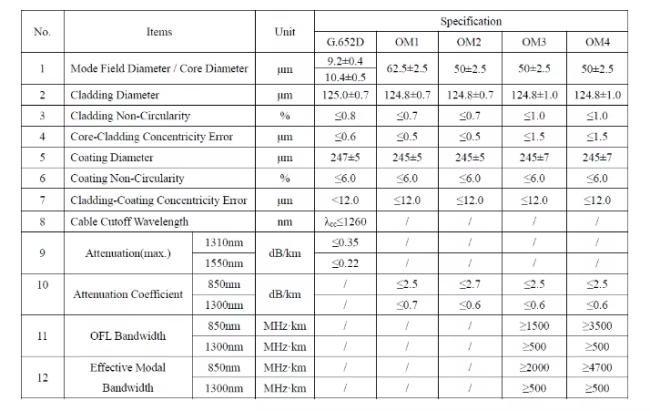

Fiber Parameters:

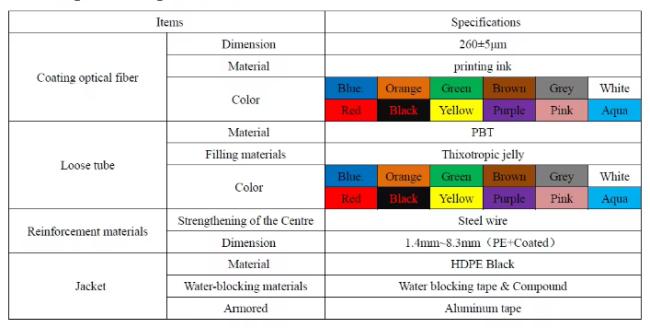

Optical cable parameters:

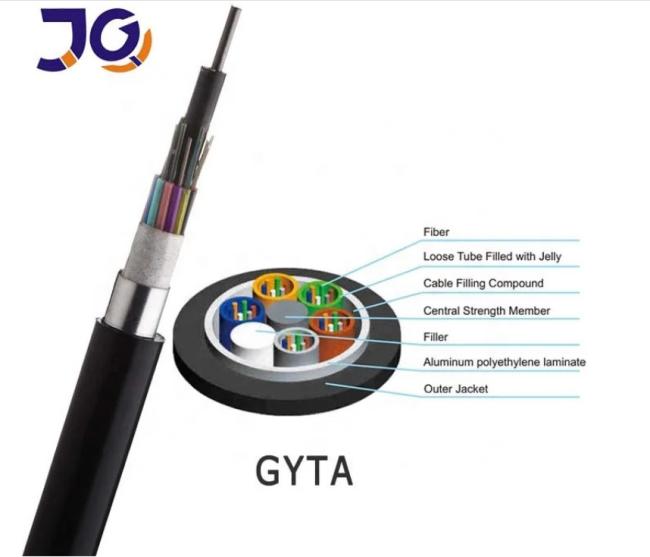

Construction:
1. Fiber 2. Jelly filling the tube 3. PBT loose tube 4. Jelly filling the cable 5, Corrugated armored
6,Steel wire central Strength 7,Water block tape 8 Possiable rip cords
Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.
Company:
Guangzhou Jiqian fiber optic Cable Co., Ltd. is a high-tech company integrating manufacturer and trade. The factory covers an area of 5000 square meters, with more advanced optical fiber cable production equipments and testing equipments. Our company has R&D department, production department, quality inspection department, sales department, after-sales department, and logistics department. Our company passed the ISO 9001:2000 quality system certification in 2010. With a complete quality control system, excellent technical team, advanced equipment and reliable quality, our customers are all over the world.
Certification:
