ADSS double jacket Single Mode Self-Supporting 24 Core 48 Core Fiber Optic Cable G652D For Aerial

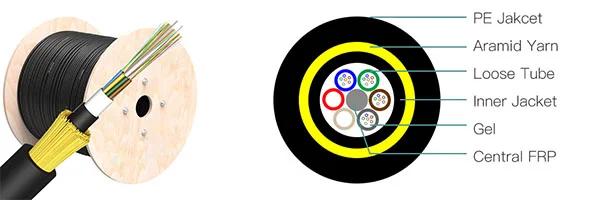

& ADSS cable is loose tube stranded.
& Fibers,250μm,are positioned into a loose tube made of high modulus plastics.The tubes are filled with a water-resistant filling compound.
& The tubes(and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a
non-metallic central strength member into a compact and circular cable core.
& After the cable core is filled with filling compound,it is covered with thin PE(polyethylene)inner sheath.
& After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE or AT(anti-tracking)outer sheath.
Characteristics:
1. Can be installed without shutting off the power.
2. Excellent AT performance. The maximum inductive at the operating point of AT sheath can reach 25kV.
3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and upholder.
4. Large span lengths and the largest span is over 1000m.
5. Good performance of tensile strength and temperature.
6. The design life span is 30 years.

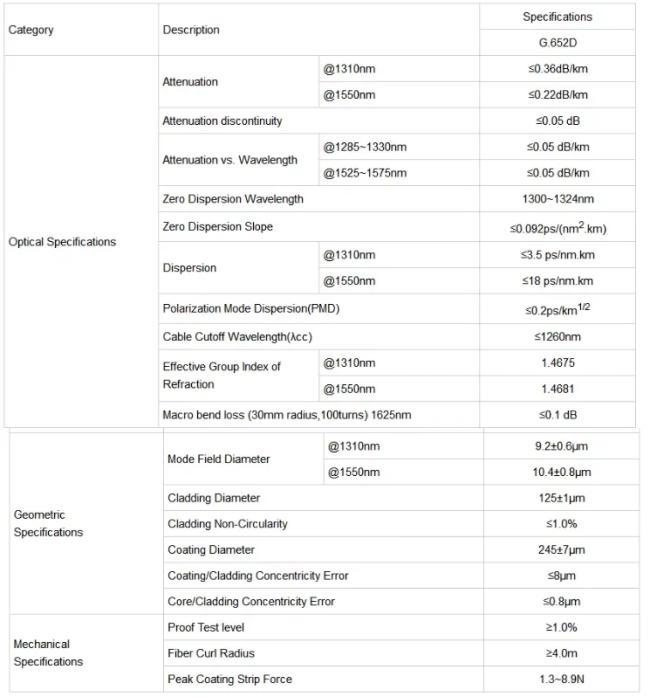

Specification:
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
-MOQ : 1KM
6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.
7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
