8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable

Name: 8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Brand: JQ

Product Description

Aerial Armored Self-supported Figure 8 Fiber Optic Cable 8 12 24 core GYTC8Y/GYTC8S/GYXTC8A/GYXTC8Y

Applications

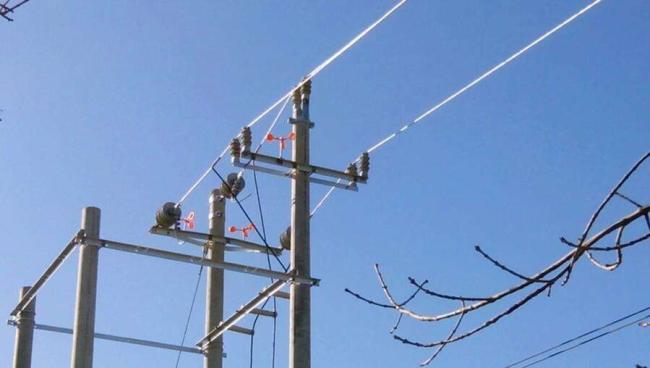

Overhead laying

The cable is applicable for long-distance and interoffice communication

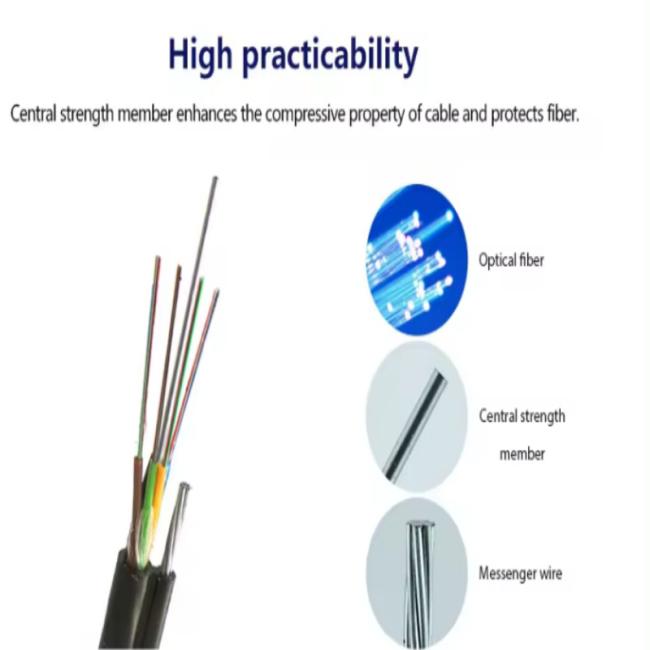

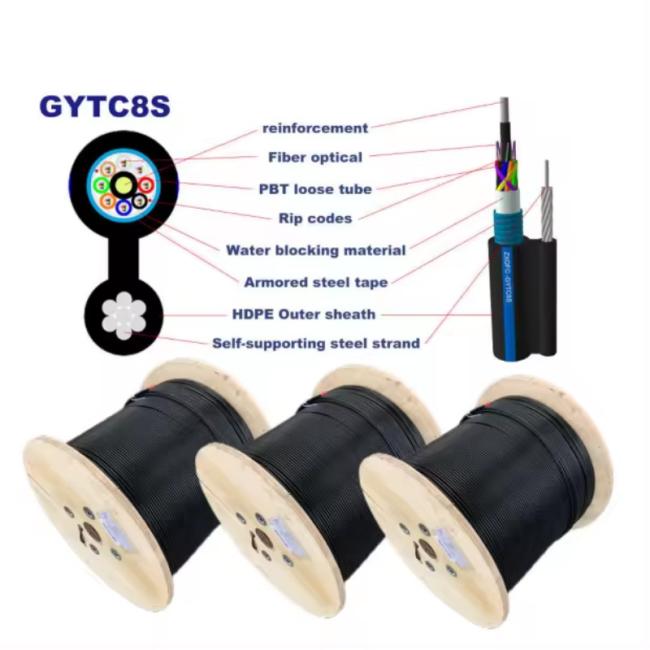

Cable Structure

Fiber Parameter

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Cable Performance

item	Specification
Model Number	GYFTC8Y
Type	Outdoor Fiber Optic Cable
Place of Origin	China
	Guangdong
Brand Name	Jiqian/OEM
Strength member	7*1.0MM stranded steel wires
Product name	Outdoor Figure 8 Fiber Optic Cable
Color	Black
JACKET	PE
Structure	Figure 8 shape

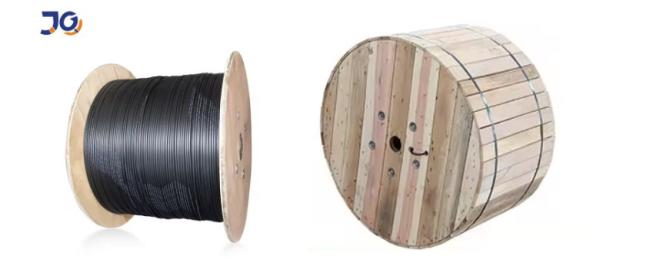

Packing	Wooden drum
Dimensions	9.0*14.5mm
Fiber Type	G652D
Operating temperature	-40~+75
Fiber count	4-144 Count
MOQ	1 Kilometers
