Outdoor Fiber Optical Cable ADSS Cable 24core 48core
ADSS Fiber Optic Cable Outdoor ,suitable for Aerial

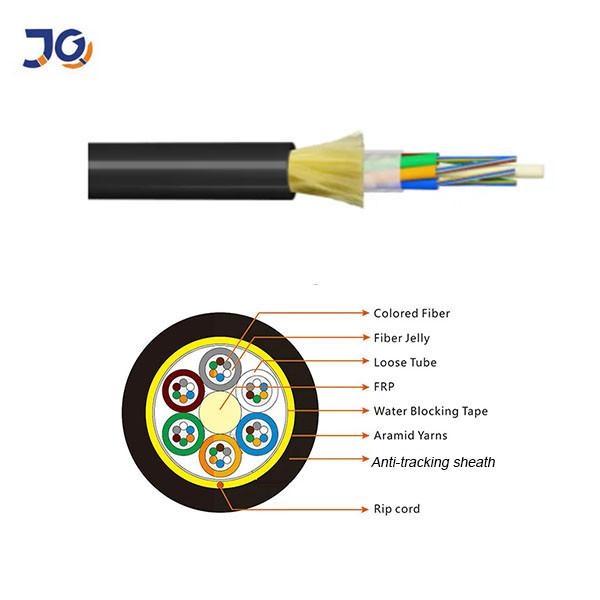

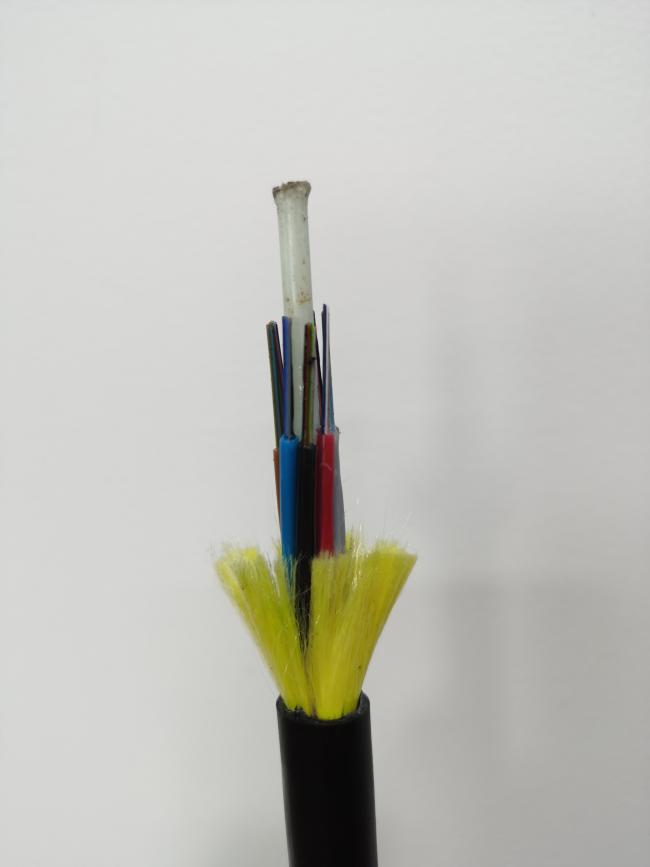

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound.it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Cables can be supplied with dry core or semi dry core
4. Specially designed Cable structure is available on request.
Features :
1. Can be installed without shutting off the power;
2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV;
3.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops;
4. Large span lengths and the largest span is over 1000m;
5. Good performance of tensile strength and temperature;
6.The design life span is 30 years.
Printing : Support Print on Jacket .
Packing :
2km/3km/4km per wooden drum or customized
Port:Shenzhen/Guangzhou
Lead time:
| Quantity(km) | 100-300 | >300 |
| Est time(day) | 3 | negotiable |
Company profile:
Guangzhou Jiqian fiber optic calbe Co.,Ltd is a high-tech company group engaged in researching,manufacturing,selling communication products with our import and export rights.
Our corporation is a professional manufacturer of fiber optic cable,FTTH drop cable and patch cord over 10 years,with ISO RoHS CE certificates.We OEM or design any structure of fiber optic cable for you.
The main products of our company are :optical fiber cable,fiber patch cords and other related items,all of our products are widely used in telecom,network. and exported to all over the world,such as Mildives,south africa,Malaysia,Iraq,India,Pakistan etc

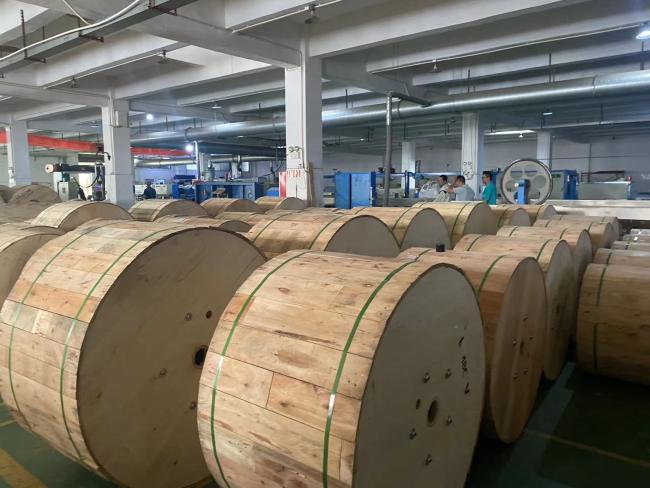

Welcome to visit our factory in Guangzhou,China
Our Delievery Cable to Customer :
FAQ:
Q1: What is the Brand Name and Model Number of ADSS Fiber Optic Cable?
A1: The Brand Name is JQ and the Model Number is ADSS.
Q2: Where is it manufactured?
A2: ADSS Fiber Optic Cable is manufactured in Guangzhou, China.
Q3: What is the transmission speed of ADSS Fiber Optic Cable?
A3: ADSS Fiber Optic Cable supports up to 10 Gbps transmission speed.
Q4: What is the range of ADSS Fiber Optic Cable?
A4: The range of ADSS Fiber Optic Cable is up to 80km.
Q5: What is the core diameter of ADSS Fiber Optic Cable?
A5: The core diameter of ADSS Fiber Optic Cable is 0.9mm.
