Underground Armored SM G652D 48 96 144 Core Fiber Optical Cable
Price:
Negotiable
MOQ:
1000m
Delivery Time:
Usually 5-7 days
Brand:
Jiqian
Product Description

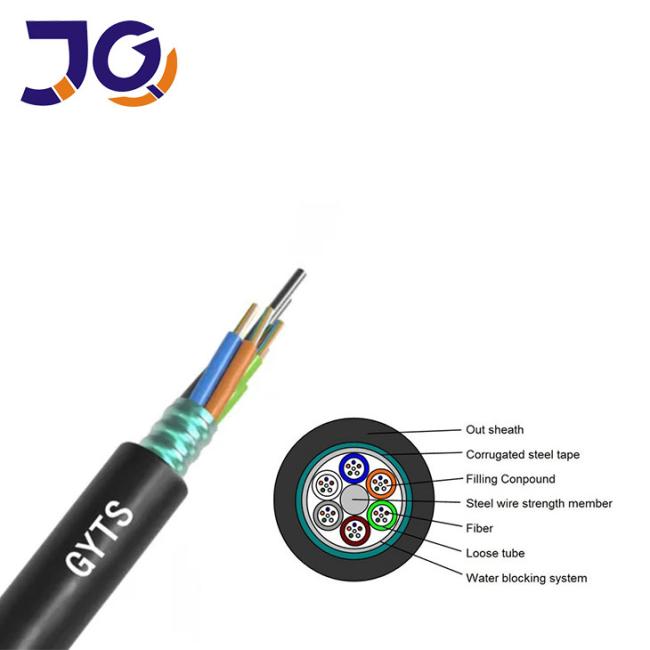

GYTS optical cable is a communication cable with the same transmission speed as light. It has wide bandwidth, fast transmission speed, good confidentiality, anti-electromagnetic interference, good insulation, long life and good chemical stability. GYTS optical cable is mainly divided into two types: GYTS multi-mode fiber optical cable and GYTS single-mode fiber optical cable.
Features:
1.tensile strength
2.wear resistance
3.impact resistance
G652D Fiber Optic:
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | mm | ≤0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | mm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 | |
| Proof stress level | kpsi | ≥100 | |
Mechanical and Environmental Characteristics
| Item | Unit | Specifications |
| Tension(Long Term) | N | 800 |
| Tension(Short Term) | N | 2000 |
| Crush(Long Term) | N/10cm | 500 |
| Crush(Short Term) | N/10cm | 1500 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min.Bend Radius(Static) | mm | 10D |
| Installation Temperature | ℃ | -40～+60 |
| Operating Temperature | ℃ | -40～+70 |
| Storage Temperature | ℃ | -40～+70 |
|
Repeating bending |
Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. |
|
|
Torsion |
Load:250N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage. |
|
|
Impact |
Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage. |
|
COMPANY PROFILE:
1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world
Exhibition:
FAQ:
Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you provide OEM or ODM
A: Yes
Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock
Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you provide OEM or ODM
A: Yes
Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock
Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
FOR MORE INFORMATION PLEASE CONTACT ME
