Double Jacket ADSS Outdoor Aerial Fiber Optic Cable Self Supporting 48 Core
12/24/48/96 Core ADSS Outdoor Fiber Optic Cable – Ideal for Aerial Installation

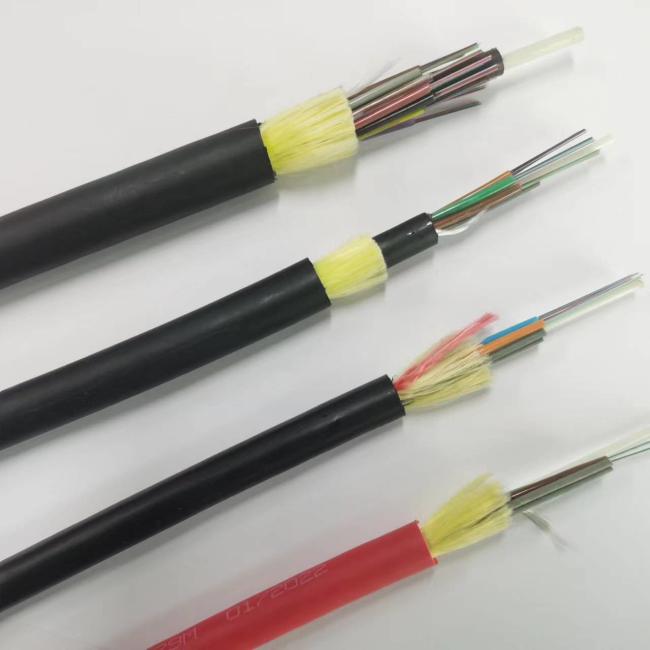

This ADSS (All-Dielectric Self-Supporting) fiber optic cable features a loose tube stranded construction. Each 250μm optical fiber is housed within a loose tube made from high-modulus plastic, filled with a water-blocking gel to ensure moisture resistance.
The tubes and fillers are helically stranded around a central strength member made of FRP (Fiber Reinforced Plastic), forming a compact and circular core. The core is then filled with a protective filling compound and encased in a thin polyethylene (PE) inner sheath.
To enhance tensile strength, aramid yarns are uniformly stranded over the inner sheath. Finally, a PE or AT (Anti-Tracking) outer sheath is applied, making the cable suitable for aerial applications and harsh environments.
Can Customize different Color .
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Cables can be supplied with dry core or semi dry core
4. Specially designed Cable structure is available on request.
Key Features:
-
Live-line installation: Supports deployment without the need to shut down power lines.
-
Superior AT resistance: The AT (Anti-Tracking) sheath handles induced voltages up to 25kV at the operating point.
-
Compact and lightweight: Minimizes wind and ice load impact, reducing stress on poles and support structures.
-
Long-span capability: Engineered for large span distances, with maximum spans exceeding 1000 meters.
-
High durability: Excellent tensile strength and reliable performance under a wide range of temperatures.
-
Extended service life: Designed to operate effectively for up to 30 years.
Certification :
Packing :
2km/3km/4km per wooden drum or customized
Port:Shenzhen/Guangzhou
Lead time:
| Quantity(km) | 100-300 | >300 |
| Est time(day) | 3 | negotiable |
Company Profile
Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a high-tech enterprise specializing in the research, production, and global sales of communication products. We hold independent import and export rights.
With over 10 years of experience, we are a professional manufacturer of fiber optic cables, FTTH drop cables, and patch cords. Our operations are certified with ISO, RoHS, and CE standards. We offer OEM services and can customize any fiber optic cable structure to meet your needs.
Our main product range includes optical fiber cables, fiber patch cords, and related accessories, which are widely applied in telecommunications and networking. Our products are exported worldwide, including to the Maldives, South Africa, Malaysia, Iraq, India, Pakistan, and other regions.
We warmly welcome you to visit our factory in Guangzhou, China.
Our Delievery Cable to Customer :
FAQ – ADSS Fiber Optic Cable
Q1: What is the brand and model of your ADSS fiber optic cable?
A1: Our brand is JQ, and the model is ADSS.
Q2: Where is your ADSS cable produced?
A2: It is manufactured in Guangzhou, China.
Q3: What transmission speed does the ADSS cable support?
A3: It supports data transmission speeds of up to 10 Gbps.
Q4: What is the maximum transmission distance?
A4: The cable can transmit over distances of up to 80 kilometers.
Q5: What is the diameter of the fiber core used in the cable?
A5: The fiber core has a diameter of 0.9 mm.
