24 36 48 72 Core OPGW Optical Ground Wire Cable Composite Fiber Optic Cable
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
2days
Brand:
JQ/Haiso/OEM
Product Description
Product Description:
Overview of G652D OPGW Fiber Optic Cable (24, 36, 48, 96, 144 Cores)
Optical Fiber Composite Overhead Ground Wire (OPGW) is a dual-purpose cable that integrates optical fiber units within the structure of an overhead ground wire. This innovative design combines the electrical and mechanical properties of traditional ground wires with the capability to transmit audio, video, and data signals, ensuring efficient communication alongside power transmission.
Key Features of G652D OPGW Fiber Optic Cable
- Compact and Lightweight: Features a small cable diameter and reduced weight, minimizing short-circuit current capacity for optimized performance.
- Durable Metal Armoring: The outer layer is encased in metal, providing resistance to high-voltage galvanic corrosion and degradation.
- Ease of Maintenance: Designed for straightforward maintenance and capable of addressing line-crossing challenges, with mechanical properties that meet diverse line requirements.

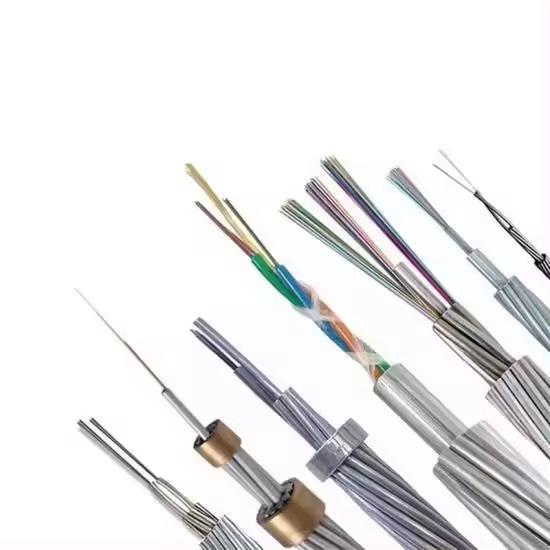

Structural Design of G652D OPGW Fiber Optic Cable
- Central Loose Tube Type: Ideal for cables with a cross-sectional area of 80 mm² or less, offering a compact solution for lower fiber counts.
- Loose Layer Stranded Type: Suited for cables with larger cross-sectional areas, accommodating higher fiber counts such as 96 or 144 cores for enhanced capacity.
Specifications:
| Cable model | OPGW-60 | OPGW-70 | OPGW-90 | OPGW-110 | OPGW-130 |
| Number /diameter(mm) of stainless steel tube | 1/3.5 | 2/2.4 | 2/2.6 | 2/2.8 | 1/3.0 |
| Number /diameter of AL wire(mm) | 0/3.5 | 12/2.4 | 12/2.6 | 12/2.8 | 12/3.0 |
| Number /diameter of ACS wire(mm) | 6/3.5 | 5/2.4 | 5/2.6 | 5/2.8 | 6/3.0 |
| Diameter of Cable (mm) | 10.5 | 12 | 13 | 14 | 15 |
| RTS(KN) | 75 | 45 | 53 | 64 | 80 |
| Cable weight (kg/km) | 415 | 320 | 374 | 432 | 527 |
| DC resistance(200C W/km) | 1.36 | 0.524 | 0.448 | 0.386 | 0.327 |
| Modulus of elasticity(Gpa) | 162 | 96.1 | 95.9 | 95.6 | 97.8 |
| coefficient of Linear thermal | 12.6 | 17.8 | 17.8 | 17.9 | 17.2 |
| expansion(1/℃×10-6) | |||||
| Short circuit capacity (kA²s) | 24 | 57.3 | 78.9 | 105.8 | 150.4 |
| Max. operation temperature (℃) | 200 | 200 | 200 | 200 | 200 |
| Max. fiber count | 48 | 32 | 48 | 52 | 30 |
