GYTA 2-144 Core Armoured Fiber Optic Cable for Aerial Duct Installation
GYTA Armoured Optical Fiber Cable – 2-144 Core, Stranded Loose Tube, Aerial & Duct Use, Aluminum Strip for Enhanced Durability

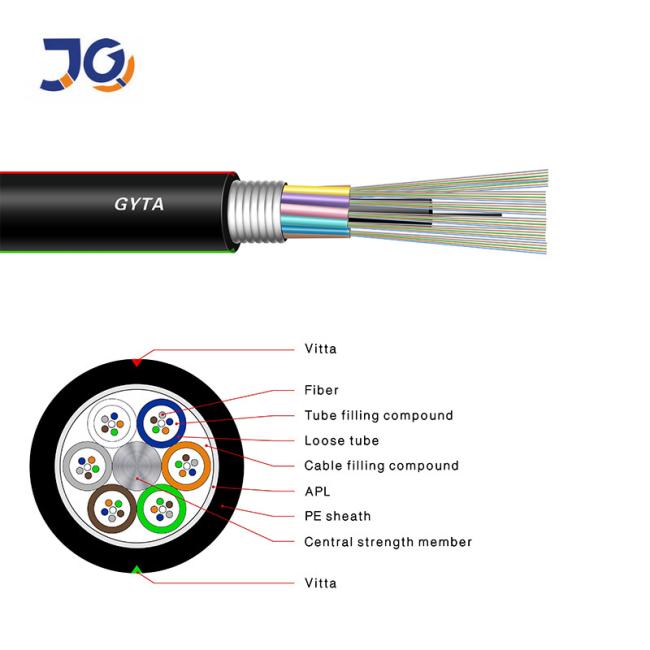

Loose tubes are stranded around a central strength member to form the cable core. The core is bound by an aluminum polyethylene laminate, bonded to a PE inner jacket with a moisture barrier. A corrugated steel tape, laminated with polyethylene, is applied, followed by a medium-density PE outer jacket. GYTA cables are suitable for aerial and duct installations, but not for direct burial. The aluminum strip (A) provides better rust and moisture resistance than steel, ensuring a longer service life in duct applications.
-
High tensile strength with excellent resistance to mechanical stress, crush, temperature, and transmission.
-
Phosphatized steel wire as the central strength member, with PE buffer extruded when needed.
-
Loose tubes, cable core, and interstices filled with moisture-proof gel to prevent water ingress.
-
Aluminum tape laminated with polyethylene, bonded to the PE inner sheath for radial moisture protection.
Specification:
| item | value |
| Model Number | GYTA |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Loose tube material | PBT |
| Central strength member | steel wire |
| Armoured | Al tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Aluminum/Steel Tape armor |
| Color | Black or as your need |
| Package | Fumigation free wooden drum |
| Installation | aerial, in duct |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| OEM | Available |
Structure and Technical Specifications:
| Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
| Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
| (mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.
WHY CHOOSE US:
Certification:
FAQ
-
Who are we?
Based in Guangdong, China, we’ve been operating since 2017. We sell to Africa (33%), South America (17%), Western Europe (17%), the Middle East (17%), Southeast Asia (9%), and South Asia (7%). Our team consists of 11-50 people. -
How do we guarantee quality?
-
Pre-production sample approval
-
Final inspection before shipment
-
What products do we offer?
-
Fiber Optic Cable
-
FTTH Drop Cable
-
Communication Cables
-
Outdoor/Indoor Fiber Cable
-
What services do we provide?
-
Delivery Terms: FOB, EXW
-
Payment Currency: USD, CNY
-
Payment Methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash
-
Languages Spoken: English, Chinese
-
MOQ: What is the minimum quantity?
-
MOQ: 1KM
-
Can I get a sample?
-
Yes, we provide free samples; you just need to cover the express freight.
-
Do you accept OEM or ODM?
-
Yes, we are a manufacturer with our own Engineering Department. Just share your requirements with us.
-
What is your delivery time?
-
Delivery is typically within 3-7 days after order confirmation, depending on quantity.
