Fire Resistant Armored Fiber Optic Cable MGTSV MGXTSV Mining Grade Flame Retardant Communication Wire
Anti-Rodent Fireproof Mining Fiber Optic Cable MGTSV
Product Description

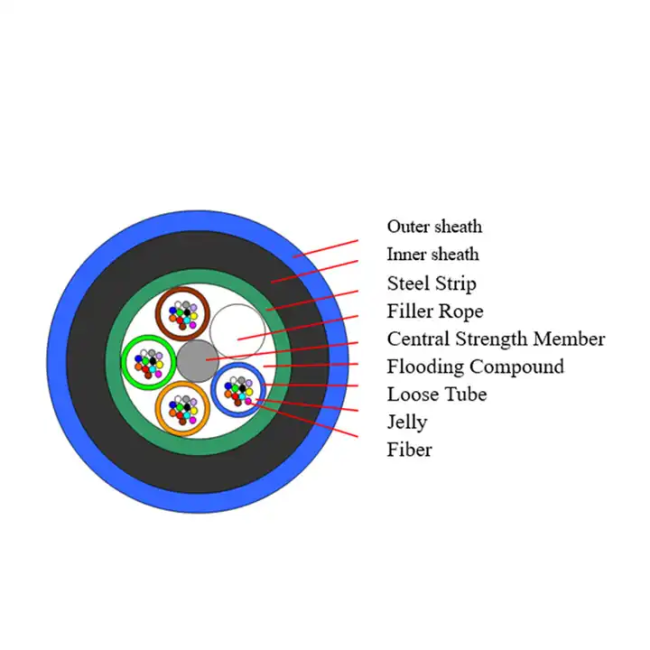

The MGTSV mining flame-retardant fiber optic cable is designed with 250μm fibers housed in loose tubes made of high-strength material, filled with waterproof gel for fiber protection. The cable core uses a central metal strength member, and for some models, an additional PE layer is extruded for reinforcement. Loose tubes and filler ropes are stranded around the central core, with water-blocking compound filling the gaps to ensure compact structure and moisture resistance.
A double-sided PSP (plastic-coated steel tape) is applied for enhanced mechanical strength and anti-rodent protection. The inner sheath is made of PE, while the outer sheath adopts a blue flame-retardant PVC layer for fire resistance and durability.
Certified by Coal Safety Production Supervision authorities, the MGTSV cable meets strict safety requirements for coal mine communications, ensuring reliable operation during accidents and minimizing loss.
Key Features
-
Excellent mechanical and thermal stability.
-
Loose tube structure with strong water resistance and high strength.
-
Fiber protected by special filling gel for long-term reliability.
-
High pressure resistance and durability.
-
PSP steel tape enhances moisture resistance and rodent protection.
-
Blue flame-retardant PVC outer sheath ensures effective fire resistance.
Applications
-
Coal mines, gold mines, iron mines, and other underground mining environments.
-
Flame-retardant communication networks in high-safety requirement areas.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 11.5 | 245 |
10
|
20
|
4000 | 10000 | 3000 | 5000 |
| 32-36 | 11.8 | 252 | 4000 | 10000 | 3000 | 5000 | ||
| 38-60 | 12.5 | 275 | 4000 | 10000 | 3000 | 5000 | ||
| 62-72 | 12.8 | 285 | 4000 | 10000 | 3000 | 5000 | ||
| 74-96 | 13.5 | 295 | 4000 | 10000 | 3000 | 5000 | ||
| 98-120 | 14.8 | 305 | 4000 | 10000 | 3000 | 5000 | ||
| 122-144 | 15.6 | 315 | 4000 | 10000 | 3000 | 5000 | ||
| 146-216 | 17.5 | 345 | 4000 | 10000 | 3000 | 5000 | ||
| 218-240 | 18.8 | 365 | 4000 | 10000 | 3000 | 5000 | ||
| 242-288 | 20.5 | 395 | 4000 | 10000 | 3000 | 5000 | ||
Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788

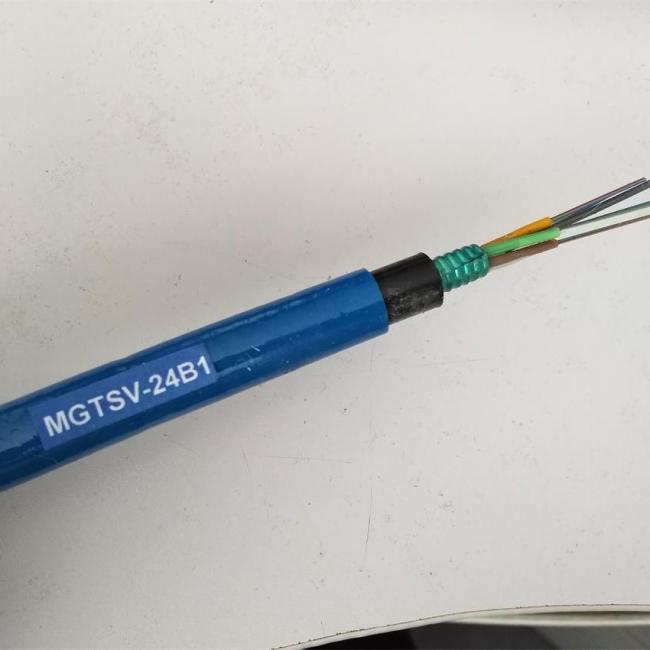

Detail product pictures
