ADSS Fiber Optic Cable G652D Single Jacket Non Metallic 6 12 24 48 96 Core 100 200m Span
6 / 12 / 24 / 48 / 96 Core | G652D | 100–200m Span
-

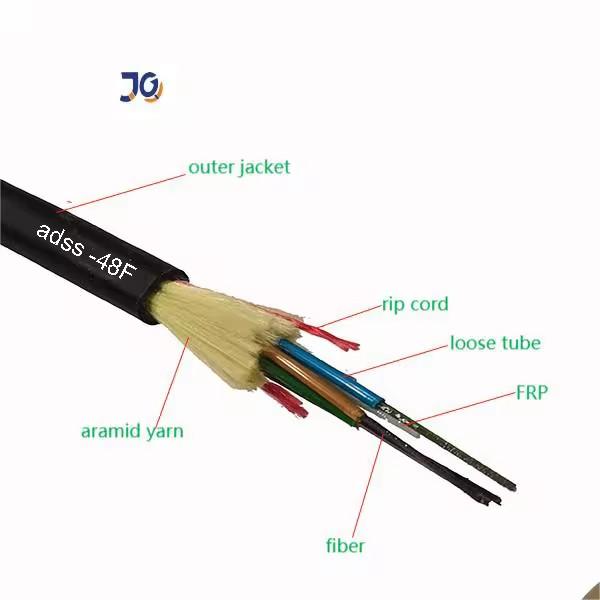

All-Dielectric Design
Non-metallic structure ensures excellent electrical insulation and resistance to electromagnetic interference -
Self-Supporting Structure
No messenger or support wire required, reducing installation time and cost -
Single PE Jacket
Durable outer sheath provides UV, moisture, and weather resistance -
Multiple Fiber Counts
Available in 6 12 24 48 96 cores to meet different network capacities -

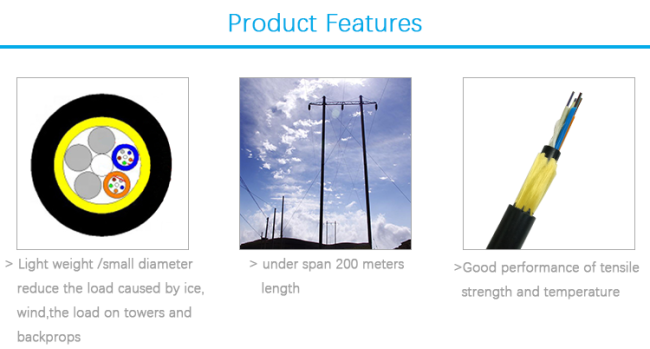

Optimized for Medium Span
Suitable for 100m to 200m aerial span installations
Applications
-
Aerial fiber optic communication networks
-
Power transmission and distribution lines
-
FTTH and access networks
-
Urban and rural overhead installations
Technical Data:
| Cable fiber count | / | 2~30 | 32~60 | 62~72 | |||
| Structure | / | 1+5 | 1+5 | 1+6 | |||
| Fiber style | / | G.652D | |||||
| Central strength member | material | mm | FRP | ||||
| Diameter (average) | 1.5 | 1.5 | 2.1 | ||||
| Loose Tube | Material | mm | PBT | ||||
| Diameter (average) | 1.8 | 2.1 | 2.1 | ||||
| Thickness(average) | 0.32 | 0.35 | 0.35 | ||||
| Max fiber/loose tube | 6 | 12 | 12 | ||||
| Tubes color | Full color identification | ||||||
| Fiber excess length | % | 0.7~0.8 | |||||
| Water resistance | Material | / | Cable jelly | ||||
| Inner sehath | material | mm | MDPE | ||||
| Inner sheath | 0.9mm | ||||||
| Non-metallic strengthen components | Material | / | Aramid Yarn | ||||
| Outer sheath | material | mm | MDPE | ||||
| Outer sheath | 1.8mm | ||||||
| Cable diameter(average) | mm | 10.9 | 11.5 | 12.1 | |||
| Cable weight (Approximate) | kg/km | 95 | 110 | 120 | |||
| Cable Sectional area | mm2 | 93.31 | 103.87 | 114.99 | |||
| Attenuation coefficient(Max) | 1310nm | dB/km | 0.35 | ||||
| 1550nm | 0.21 | ||||||
| Rated Tensile Strength(RTS) | kn | 6 | |||||
| Max allowed tension( MAT) | kn | 2.5 | |||||
| Annual average operating tension (EDS) | kn | 3.2 | |||||
| Young's modulus | kn/mm2 | 7.8 | |||||
| Coefficient of thermal expansion | 10-6/℃ | 9 | |||||
| Crush resistance | Long term | N/100mm | 1100 | ||||
| Short term | 2200 | ||||||
| Permission Bent Radius | static | mm | 15 of OD | ||||
| dynamic |
20 of OD
|
||||||
FAQ
1. Are you a manufacturer or trading company?
We are a direct manufacturer with our own factory located in Guangzhou, China. Factory visits are always welcome.
2. What is the minimum order quantity (MOQ)?
The standard MOQ is 1 km. Trial orders are supported, especially for new projects.
3. Do you offer samples?
Yes. Free samples are available. Customers only need to cover the shipping cost.
4. What payment methods do you accept?
We accept L/C, T/T, Western Union, and PayPal.
5. What is the delivery time?
Production time is usually 3–7 working days, depending on order quantity and specifications.
6. Can you provide OEM or customized products?
Yes. OEM and ODM services are available, including customized structures, specifications, and logos.
7. Which fiber brands are available?
We can supply fibers from Corning, YOFC, FiberHome, and other major brands upon request.
