MGTSV 24 Core Armored Mining Fiber Optic Cable Single Mode Flame Retardant Duct Optical Cable
Multi Loose tube Miner Duct Fiber Optic Cable MGTSV
Application
-
Mining communication systems
-
Underground tunnels and duct networks
-
Industrial harsh environment communication
-
Metro and utility corridor networks
-
Safety monitoring and emergency communication
Key Features
-
Steel wire strength member for high tensile strength
-
PSP armored structure for crush and rodent resistance
-
Gel-filled loose tubes with full water-blocking design
-
Flame-retardant PVC outer sheath for fire safety
-
Stable performance in humid and high-stress environments
|
Item Name
|
MGTSV Fiber Optic Cable
|
|
Place of Origin
|
Guangdong,China
|
|
Model Number
|
MGTSV
|
|
Brand Name
|
JQ/ Jiqian/ Customize |
|
Fiber Type
|
Single mode ITU-T G652D
|
|
Fiber No.
|
2-288 cores
|
|
Strength Member
|
Central Steel Wire/ FRP
|
|
Material of Jacket
|
Flame-retardant Sheath
|
|
Cable Structure
|
Stranded Loose Tube
|
|
Certificate
|
ISO9001/CE/RoHS/CE
|
|
Storing Temperature
|
-40℃ to +70℃
|
|
Application
|
Duct/Aerial
|
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical data
| Cable Type |
Fiber Count |
Tubes +Fills |
Cable Diameter mm |
Cable Weight Kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long /Short Term N/100m |
Bending Radius Static /Dynamic mm |
|
MGTSV-2~6 |
2~60 | 5 | 12.2 | 156 | 1000/2000 | 500/1500 | 15D/30D |
| MGTSV-62~72 | 62~72 | 6 | 13.8 | 210 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-74~96 | 74~96 | 8 | 15.1 | 242 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-98~120 | 98~120 | 10 | 17.2 | 280 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-122~144 | 122~144 | 12 | 19 | 320 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-146~216 | 146~216 | 18 | 19 | 320 | 1750/3500 | 500/1500 | 15D/30D |

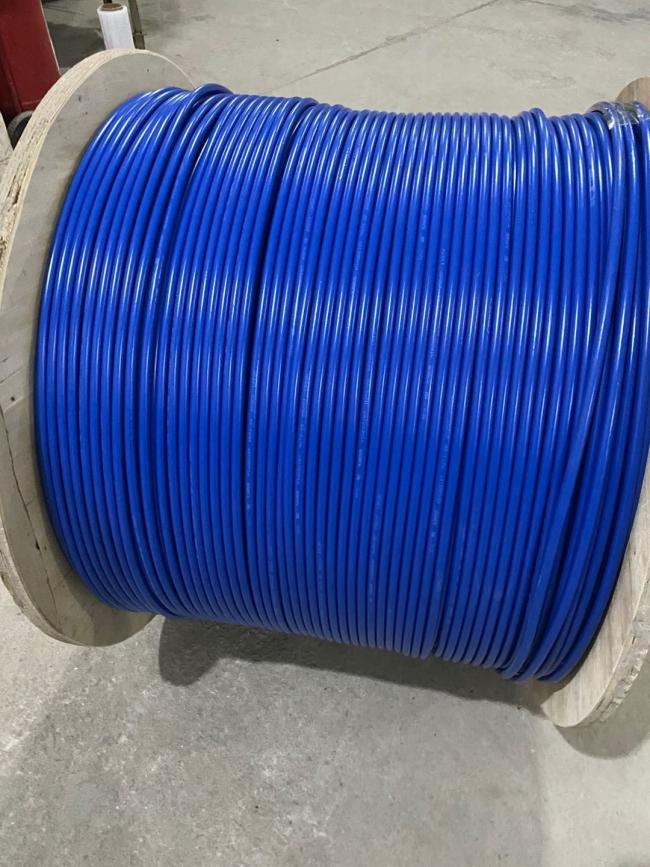

Product Image
Packing&Delivery
1/2/3/4/5 km in one wooden drum,deliver days:5-8work days
FAQ
Q1 Are you manufacturer
Yes we are professional fiber optic cable factory.
Q2 Do you support OEM customization
Yes OEM and custom design are available.
Q3 What fiber types do you supply
G652D G657A1 G657A2 and customized fiber types.
Q4 What is your MOQ
Normally 1 km trial order supported.
Q5 Do you provide samples
Yes free samples available customer pays freight.
Q6 What is delivery time
Usually 3 to 7 working days depending on quantity.
Q7 What certificates do you have
ISO9001 CE RoHS and other international standards.
Q8 What is cable service life
More than 25 years under normal conditions.
