Two FRP Strength Member ASU 80 Aerial Fiber Optic Cable 12 Core GYFFY
Product Description

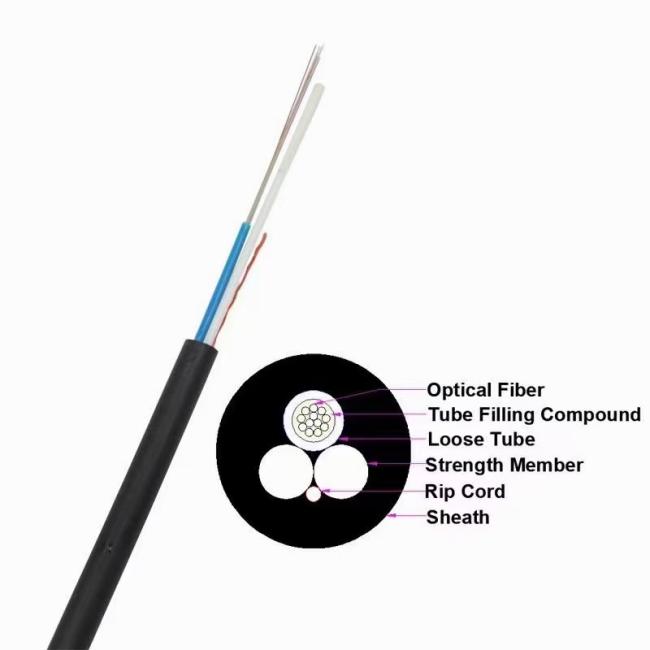

GYFFY ASU Fiber Optic Cable is a lightweight loose tube aerial cable designed for short span installations. The 250μm fibers are placed in a high-modulus loose tube and stranded around dual FRP strength members. The cable core is filled with water-blocking compound and protected by a PE sheath, ensuring stable outdoor performance.
Key Features
• Compact structure and lightweight design
• Dual FRP strength members for strong tensile performance
• Excellent waterproof protection (gel or gel-free optional)
• Cost-effective with high fiber capacity
• Easy installation and maintenance
Applications
• Short span aerial networks
• Duct and access network deployment
• FTTH and rural broadband infrastructure
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical parameter
Cable Core |
Unit | 2F | 4F | 6F | 8F | 10F | 12F |
| No. Of Tubes | 1 | 1 | 1 | 1 | 1 | 1 | |
| No. Of fibers | core | 2 | 4 | 6 | 8 | 10 | 12 |
| Fiber Counts in tube | core | 2 | 4 | 6 | 8 | 10 | 12 |
| Cable Diameter | mm | 6.6±0.5 | 6.8±0.5 | ||||
| Cable Weight | Kg/km | 40±10 | 45±10 | ||||
| Allowable tensile Strength | N | Span=80,1.5*P | |||||
| Allowable crush resistance | N | 1000N | |||||
| Operation temperature | ℃ | -20℃ to +65℃ | |||||
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer with over 10 years of experience in fiber optic cables, FTTH drop cables, and patch cords. Our factory is located in Guangzhou, China. Factory visits are welcome.
2. How do you ensure product quality?
All products are fully tested before shipment. Free samples are available after price confirmation for quality evaluation.
3. Do you accept small orders?
Yes, we support small orders and new projects to help customers grow their business.
4. What is your delivery time?
Usually 3–7 working days depending on order quantity. We arrange production and shipment as soon as payment is confirmed.
5. Do you provide OEM service?
Yes, OEM service is available. We can customize logos, packaging, and product specifications based on your requirements.
