Outdoor GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Communication Networks

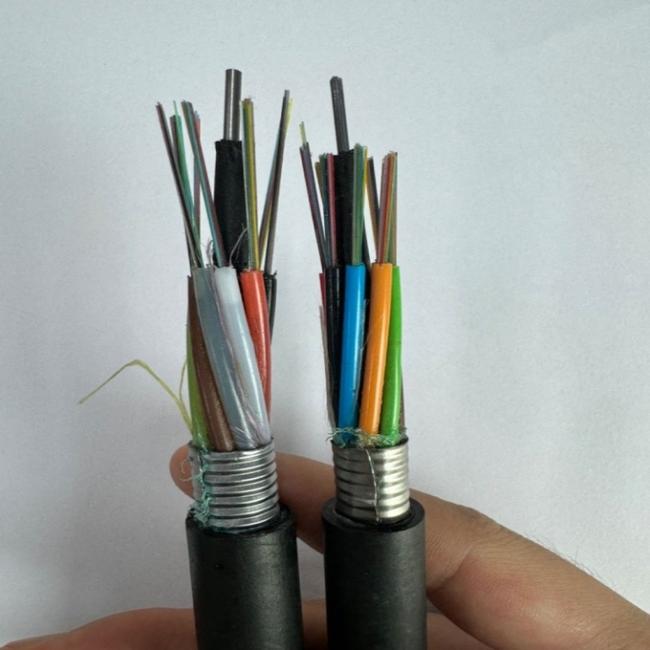

GYTA / GYTS Outdoor G652D Fiber Optic Cable (12–24 Core)
Key Features
-
G652D single mode fiber for low attenuation and stable long-distance transmission
-

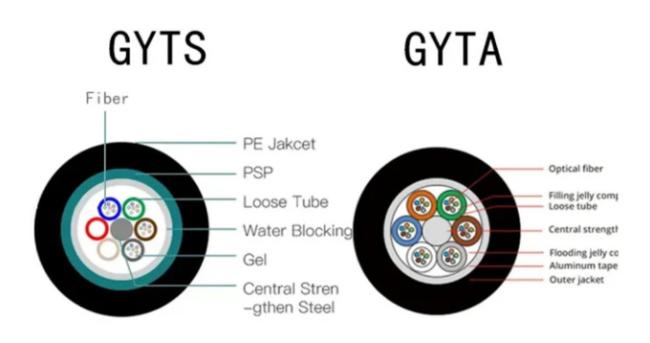

PBT loose tube structure for enhanced protection and durability
-
Central steel strength member for improved tensile performance
-
APL moisture barrier for reliable water resistance
-
PE outer sheath with excellent weather resistance
-
Compact structure suitable for outdoor environments
-
High mechanical strength for stable long-term operation
Applications
-
Urban duct communication networks
-
FTTX access networks
-
Long-distance backbone transmission
-
Telecom infrastructure projects
-
Data transmission networks
-
Outdoor duct installation environments
Product Description
Other Models Available(Single/Double Jacket)
| Fiber Count | 6 | 12 | 24 | 32 | 48 | 72 |
| Cable Diameter (mm) | 8.8 | 8.8 | 9.0 | 9.0 | 9.0 | 9.2 |
| Tolerance Range (mm) | ±0.2, or customized | |||||
| Cable Weight (kgs/km) | 75 | 75 | 75 | 75 | 75 | 75 |
| Loose tube Diameter(mm) | 1.6 or 2.0 | |||||
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Mechanical Characteristic
| Tensile (N) | Long term | 600 |
| Short term | 1500 | |
| Crush (N/100mm) | Long term | 300 |
| Short term | 1000 | |
| Min. Bending radius (D=Cable diameter) | Dynamic | 20xD |
| Static | 10xD | |
| Temperature Range (℃) | -20~+70 | |
Application

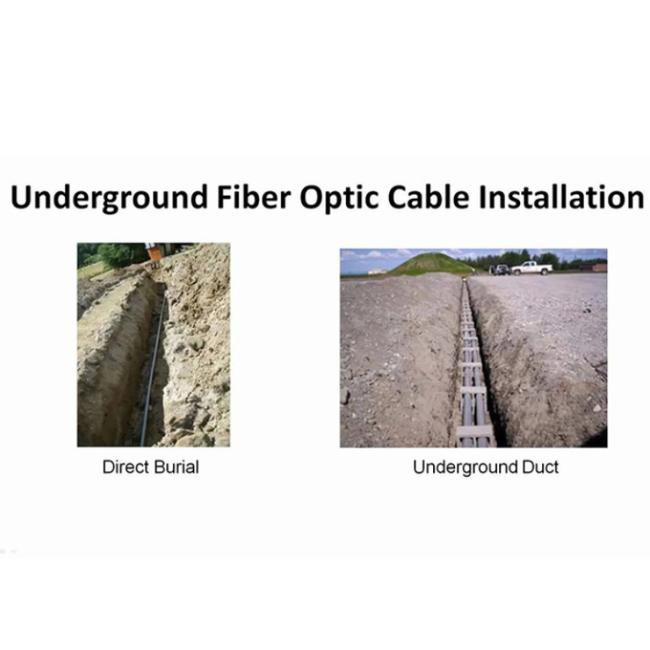

Suitable for external application in duct and aerial
Packing details

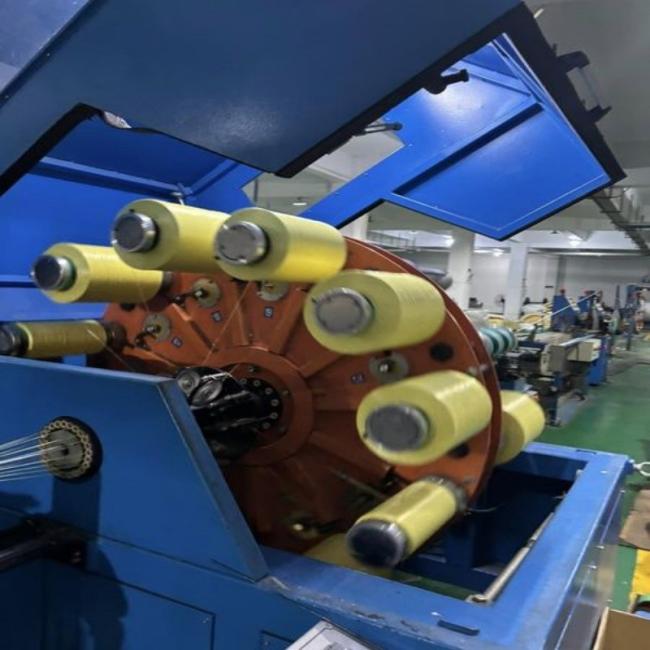

Production equipment
FAQ
1. What fiber type is used?
G652D single mode fiber for stable long-distance transmission.
2. Is it suitable for outdoor use?
Yes, the PE sheath and APL moisture barrier ensure strong outdoor performance.
3. What installation method is recommended?
Mainly designed for duct installation.
4. What is the fiber core range?
Available in 12 to 24 cores.
5. Do you support OEM?
Yes, customization and logo printing are available.
