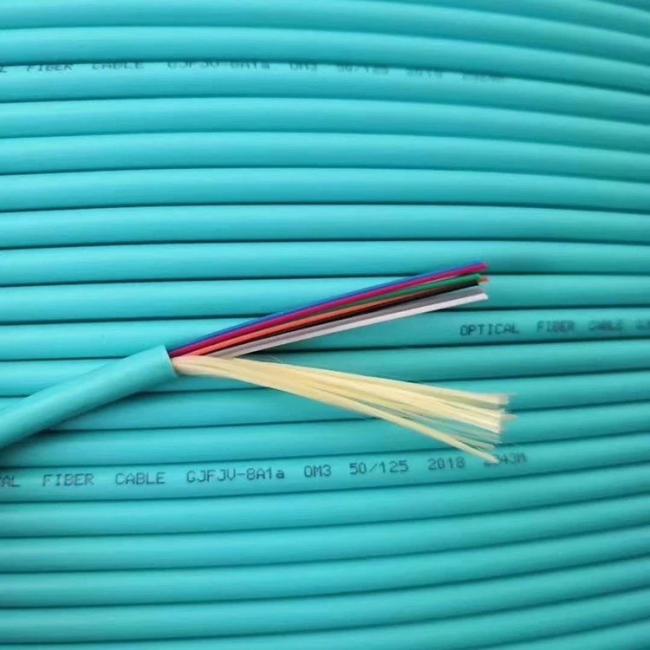

GJFJV Multi Mode 6 12 24 Core High Performance Tight Buffered Indoor Optical Cable
ODM Manufactory Supply Indoor Cable Multi Mode 6 12 24 Core GJFJV
Multi Purpose Distribution Fiber Optic Cable Product Features
-
600µm or 900µm tight buffer fibers for stable indoor transmission
-
Aramid yarn strength member for enhanced tensile performance
-
PVC or LSZH flame retardant jacket for safe indoor use
-
Flexible structure for easy installation splicing and maintenance
-
High bandwidth and reliable data transmission
Application Scenarios
-
Pigtails and patch cord production
-
Equipment interconnection lines
-
Indoor and limited outdoor distribution cabling
-
Optical communication rooms and distribution frames
-
Data center and enterprise network systems
Optical Characteristics
|
|
|
G.652D |
50/125um |
625/125μm |
|
Attenuation |
@850nm |
|
≤3.0dB/km |
≤3.0dB/km |
|
(+20°C) |
@1300nm |
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
|
|
|
Bandwidth(ClassA) |
@850nm |
|
2500MHz-km |
2200MHz-km |
|
|
@1300nm |
|
21000MHz-km |
2600MHz-km |
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength λcc |
|
≤1260nm |
Cable diameter
| MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 | |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter | 900±50μm | |||||
Technical Parameters
| Tight Buffer Indoor Fiber Optic Cale GJFJV | ||||||||||
| Cable Count |
Outside Diameter |
Tight buffer Diameter |
Weight
|
Minimum allowable Tensile Strength(N) |
Minimum allowable (N/100mm) |
Minimum Bending |
Storage temperature |
|||
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) | |
| 2 | 3 | 0.9 | 15 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 4 | 5 | 0.9 | 22 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 6 | 5 | 0.9 | 23 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 8 | 5.5 | 0.9 | 28 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 12 | 6 | 0.9 | 38 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 16 | 7.2 | 0.9 | 42 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 24 | 8.3 | 0.9 | 58 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 48 | 10 | 0.9 | 96 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
Packing
2km or customized length export wooden drum
