Single Jacket ADSS All Dielectric Self Supporting Outdoor Aerial Optical Cable For Overhead Installation
Single Jacket ADSS Fiber Optic Cable All Dielectric Self Supporting Aerial Cable
Product Features
-
All dielectric non metallic structure for safe use near power lines
-
Self supporting design for easy aerial installation
-
Single jacket structure with lightweight and durable performance
-
High tensile strength for stable overhead deployment
-
Resistant to electrical interference and harsh environments
Application Scenarios
-
Overhead installation on power transmission lines
-
Outdoor aerial telecom networks
-
FTTH and FTTX access networks
-
Urban and rural broadband infrastructure
| Item | Specification |
|---|---|
| Product Name | Single Jacket ADSS Fiber Optic Cable |
| Fiber Type | Single Mode G652D / G657A |
| Fiber Count | 2 – 144 Cores |

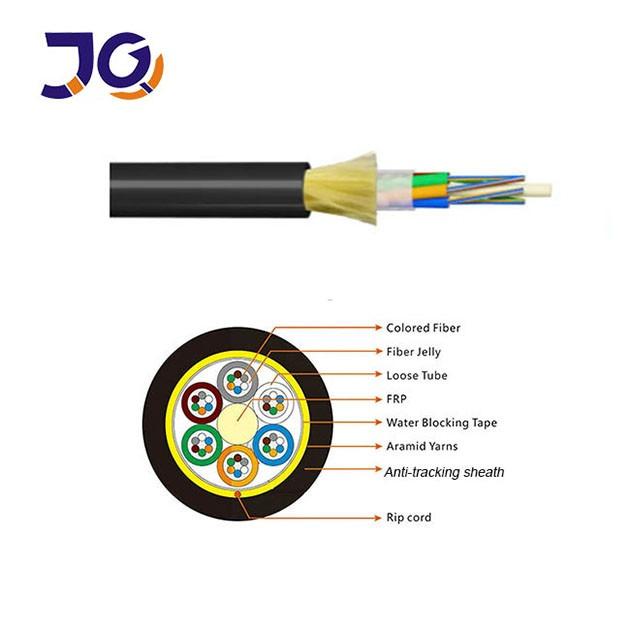

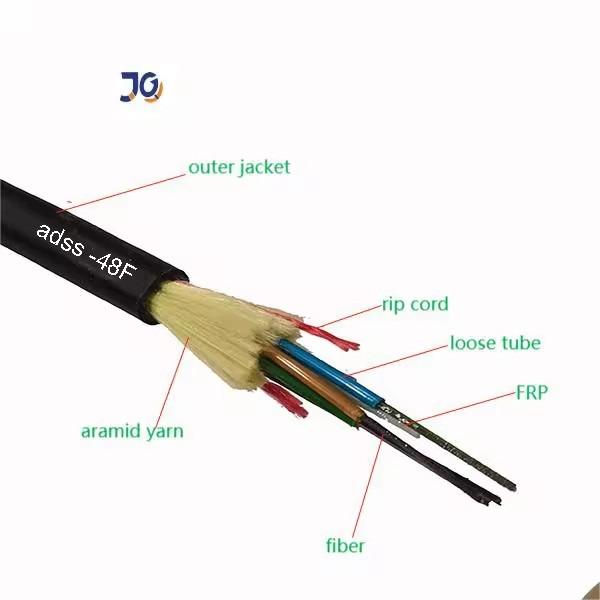

| Cable Structure | Stranded Loose Tube |
| Central Strength Member | FRP (Non-metallic) |
| Reinforcement | Aramid Yarn |
| Outer Sheath | PE or AT (Anti-tracking) |
| Installation Type | Aerial Self Supporting |
| Span Length | 80 – 200 m (customizable) |
| Operating Temperature | -40°C to +70°C |
| Application | Overhead power lines / Telecom networks |
| Standard | IEC, ITU-T compliant |
FAQ – Single Jacket ADSS Fiber Optic Cable
Q1: What is ADSS fiber optic cable used for?
A: It is mainly used for aerial installation on power poles and telecom overhead networks.
Q2: What fiber types are available?
A: G652D and G657A single-mode fibers are available.
Q3: What is the typical span length?
A: The common span is 80–200 meters, and it can be customized for longer spans.
Q4: Is the cable resistant to electrical interference?
A: Yes, the all-dielectric design makes it safe for installation near power lines.
Q5: Do you support OEM customization?
A: Yes, we support OEM services including cable structure, length, and logo printing.
