GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core

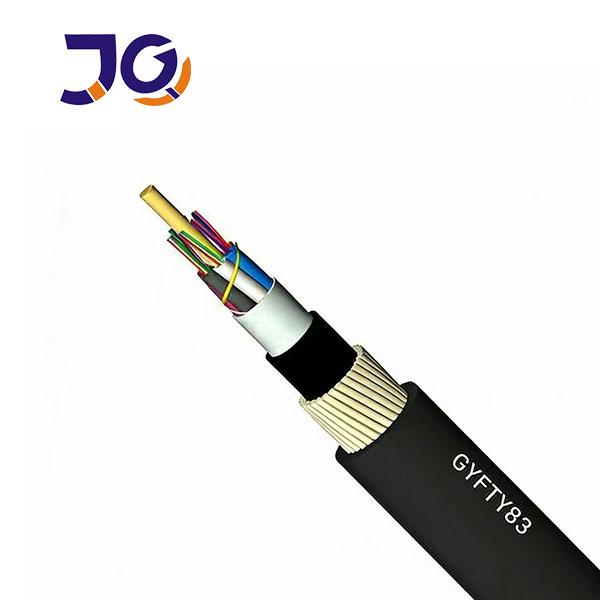

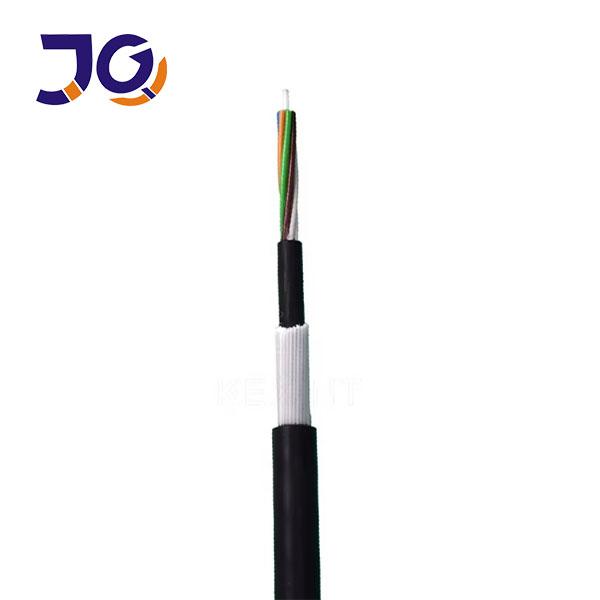

GYFTY83 Fiber Optic Cable
GYFTY83 is an all dielectric, non-metallic outdoor fiber optic cable with FRP strength member and PE outer sheath.
It features rodent resistance, lightning protection, and anti-corrosion, making it ideal for high-voltage areas, duct installation, and underground applications.
This cable adopts stranded loose tube structure, available in 4–144 cores, supporting single-mode transmission.
It provides stable performance, long service life, and reliable signal transmission for telecommunication, broadband, and power communication projects.
Application Scenarios
Suitable for outdoor duct, direct burial installation
• Applied in high-voltage power stations, power grids and areas with strong electromagnetic interference
• Ideal for lightning-prone areas due to all-dielectric non-metallic structure
• Widely used in places with serious rodent damage, such as underground pipe gallery, railway, highway, mountain areas
• Applied in petroleum, chemical industry, mining and other corrosive environments
Long term/Short term Tension:1000/3000N
Long term/Short term Crush:1000/1500N
Fiber Optic G652D:
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | mm | ≤0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | mm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 | |
| Proof stress level | kpsi | ≥100 | |

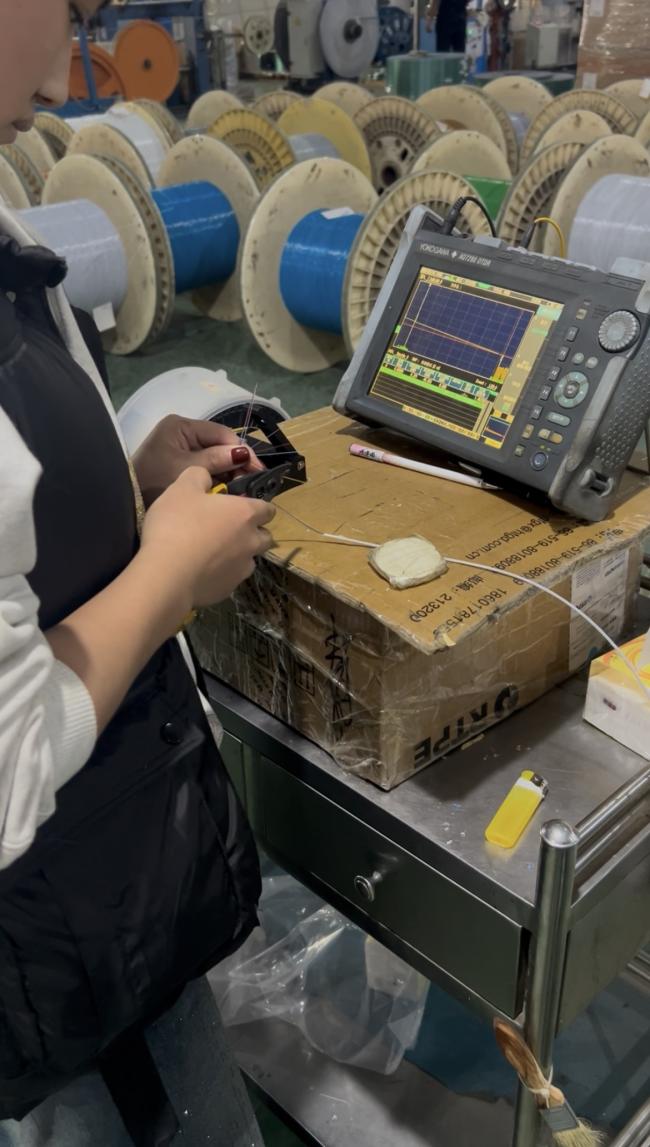

Fiber Testing
Cable testing
Company profile:
1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world
Exhibition:
FAQ
Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you provide OEM or ODM
A: Yes
Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock
Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
