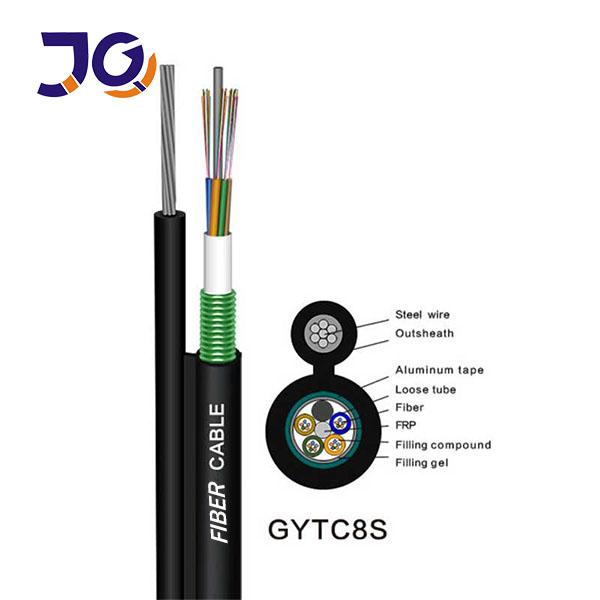

Standard Figure-8 Self-Supporting Stranded Loose Tube Optical Cable GYTC8S
-
This is a figure-8 shaped self-supporting aerial optical cable. Equipped with integrated steel suspension strand, it can be directly installed overhead without extra hanging accessories. Adopting loose tube structure and full water-blocking design, the cable features excellent tensile, compression and aging resistance. Widely used for outdoor overhead communication network laying.
![]()
Features:
1.Figure-8 integrated structure, self-supporting design, no extra messenger wire needed for aerial installation.
2.Loose tube construction, excellent resistance to tension, bending and temperature variation.
3.Steel tape armoring provides strong mechanical protection, anti-rodent and anti-crush performance.
4.Double sheathing with high-quality PE material, good waterproof, anti-aging and UV resistance.
5.Stable optical transmission performance, low attenuation, long service life.
6.Compact structure, easy for laying, splicing and maintenance.
-
Applications:
1.Aerial overhead communication lines for telecommunication networks.
2.FTTH, FTTB and fiber access systems in residential areas and campuses.
3.Outdoor trunk lines for urban and rural communication projects.
4.Video monitoring, data transmission and broadband network construction.
5.Short-distance overhead fiber links for industrial parks and road communication. - Technical parameter
Performance Long-term Short-term Max.Tension(N) 3500 7000 Max.Crushing 300 1000 Min. Bend Radius(Dynamic)20D(Dynamic) 10D(static) Storage and operating temperature -40℃ to +70℃ Optical Characteristics
Item Unit Specification Fiber Type G.652D Mode field diameter
1310nm mm 9.2±0.4 1550nm mm 10.4±0.8 Cladding diameter mm 125.0±1 Cladding non-circularity % ≤1.0 Core/cladding concentricity error mm ≤0.5 Coating diameter mm 245±5 Coating non-Circularity % ≤6.0 Coating/cladding concentricity error mm ≤12.0 Cable cut-off wavelength nm ≤1260 Attenuation Coefficient
1310nm dB/km ≤0.35 1550nm dB/km ≤0.21 Proof stress level kpsi ≥100 - Company profile:
![]()
- 1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.Exporting fiber optic cable to all over the world
4.CE/ROSH/FCC/ISO9001 Certifications - Exhibition:
![]()
