Oem G652D 6 12 24 Core Single Mode Fiber Optic Cable
GYXTW Duct Armoured G652D Single Mode Oudoor Fiber Optic Cable 6 12 24 Cores

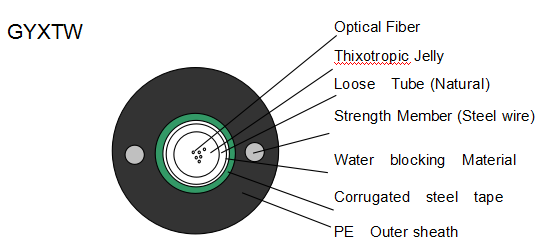

250μm's fibers are positioned in the central of a loose tube which is made of high modulus plastics and filled with water-resistant filling compound. The tube is wrapped with a layer of the plastic coated steel strip(PSP). Except the tube filling compound, PSP, water-blocking material and the PE sheath, it also has two steel wires in two sides to enhance the crush resistance and flexibility.
Technical parameters:
Feature:
Material of loose tube has good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
• The tube is filled with special filler to provide critical protection for the fiber
• Good lateral pressure resistance and softness
• Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables
• The two parallel steel wires provides enough tensile strength
• Small diameter, light weight, easy for laying
Applications
• Outdoor Duct, overhead
Optical Characteristics
|
Cable Count |
Out sheath Diameter |
Weight |
Minimum allowable TensileStrength (N) |
Minimum allowable Crush Load (N/100nm) |
Minimum Bending Radius(MM) |
Storage Temperature |
|||
| (MM) | (kg) | Short term | Long term | Short term | Long term | Short term | Long term | (°C) | |
| 12 | 8.3 | 78 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| LCD Delivery | <10000m | <20000m | <50000m | >100000m |
| 25days | 22days | 18days | 10days | |
FAQ:
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
