GYTC8S Figure 8 Fiber Optic Cable
Figure 8 Cable SASJ 48 Core GYTC8S Self-Supporting Armored Outdoor Fiber Optic Cable
Product Description

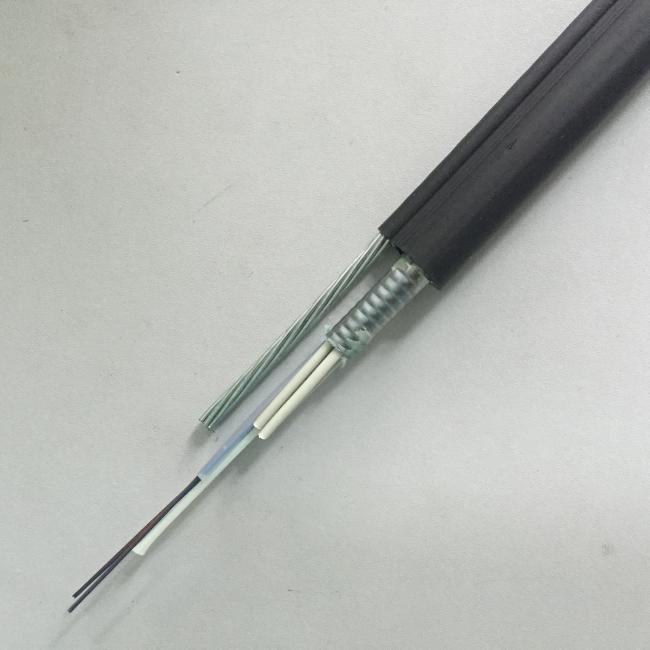

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. A corrugated steel is applied around the cable core, which is filled with the filling compound to protect it from water ingress. This part of cable accompanied with the strand wires, as the supporting part are completed with a polyethylene(PE)sheath to be figure 8 structure.
Features
1,High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
2,Good mechanical and temperature performance
3,High strength loose tube that is hydrolysis resistant
4,Special tube filling compound ensure a critical protection of fiber
5,The following measures are taken to ensure the cable watertight:
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Model | G.652D | ||
| Design(Strength Member+Tube&Filler) | 1+5 | ||
| CentralStrengthMember | Material | Steel Wire | |
| Diameter(+0.05)mm | 1.5 | ||
| LooseTube | Material | PBT | |
| Diameter(+0.06)mm | 2 | ||
| Thickness(+0.03)mm | 0.32 | ||
| TheMax.CoreNO./Tube | 12 | ||
| Filler Rope | Material | LDPE | |
| Color | White | ||
| Diameter(+0.06)mm | 2.1 | ||
| Strand Strength Member | Material | Galvanized Steel | |
| Type | φ0.9x3 | ||
| Armor layer | Material | Steel Tape | |
| OuterSheath① | Material | MDPE | |
| Thickness(+0.03)mm | 1. | ||
| OuterSheath① | Material | MDPE | |
| Thickness(40.03)mm | 1.8 | ||
| CableDiameter(土0.2)mm | 9.5*17.8(nominal) | ||
| CableWeight(+10)kg/km | 160(nominal) | ||
| Min.installation/N | 1500 | ||
| Attenuation | 1310nm | 0.35dB/KM | |
| 1550nm | 0.21dB/KM | ||
| Min.bendingradius | Without Tension | 10.0*Cableφ | |
| Under Maximum Tension | 20.0xCableφ | ||
