Non Armoured 72 Conductors GYFTY Fiber Optic Cable
Price:
Negotiable
MOQ:
1000m
Delivery Time:
2-4day
Brand:
jiqian
Product Description
Stranded Loose Tube Non metallic Strength Member Non armuored GYFTY Fiber Optic Cable

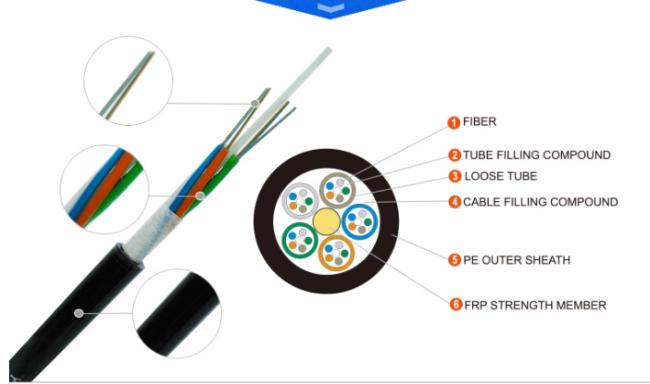

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
The properties of single mode optical fiber (ITU-T Rec. G.652D)
| Item | Specification |
| Fiber type | Single mode |
| Fiber material | Doped silica |
| Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
≤ 0.36 dB/km ≤0.32 dB/km ≤0.22 dB/km ≤0.30 dB/km |
| Point discontinuity | ≤ 0.05 dB |
| Cable cut-off wavelength | ≤ 1260 nm |
| Zero-dispersion wavelength | 1300 ~ 1324 nm |
| Zero-dispersion slope | ≤0.093 ps/(nm².km) |
| Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm |
≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km) |
| PMD | ≤0.2 ps/km½ |
| Mode field diameter @ 1310 nm | 9.2±0.4 um |
| Core / Clad concentricity error | ≤0.5 um |
| Cladding diameter | 125.0 ± 0.7 um |
| Cladding non-circularity | ≤1.0% |
| Primary coating diameter | 245 ± 10 um |
| Proof test level | 100 kpsi (=0.69 Gpa), 1% |
| Temperature dependence 0℃~ +70℃ @ 1310 & 1550nm |
≤ 0.1 dB/km |
| Operating temperature range | -40℃ to +60℃ |
| Storage / Transport temperature range | -50℃ to +70℃ |
| Installation temperature range | -30℃ to +50℃ |
Features
- 1 Good mechanical and temperature performance
- 2 High strength loose tube that is hydrolysis resistant
- 3 special tube filling compound ensure a critical protection of fiber
- 4 Crush resistance and flexibility
- 5 The following measures are taken to ensure the cable watertight:
- 6 Single Fiber Reinforced Plastic as the central strength member
- 7 Loose tube filling compound
- 8 100% cable core filling
COMPANY PROFILE
Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road ,industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
