LSZH Self Supporting Figure 8 FTTH Fiber Optic Drop Cable
Price:
Negotiable
MOQ:
1000m
Delivery Time:
2-4day
Brand:
jiqian
Product Description

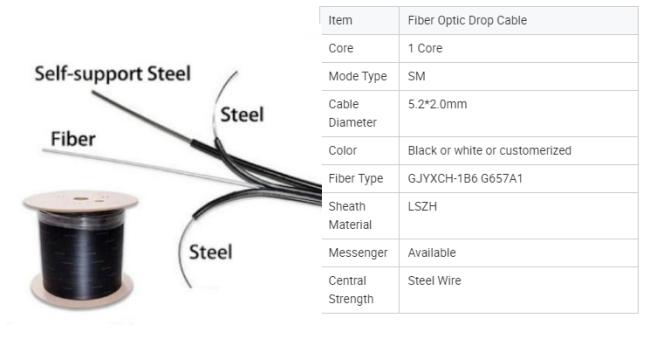

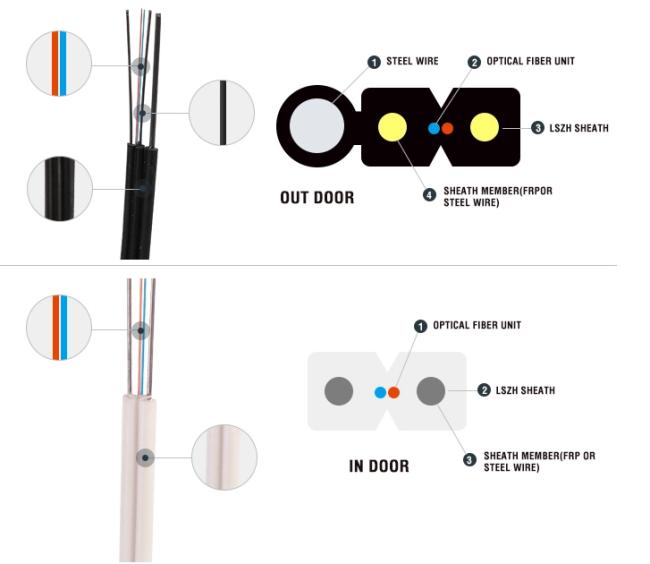

FTTH LSZH Self-Supporting Figure 8 Drop FTTH Fiber Optic Drop Cable
1. Soft and bendable, easy to deploy and maintenance.
2. Smaller diameter, Light weight, and high practicability.
3. Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.
4. Environmental protection- Low smoke, zero halogen and flame retardant sheath.
Applications:
1. Used in access network or as access cable from outdoor to indoor in customer premises network;
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor
Optical Characteristics:
|
Item
|
Technology parameter
|
||
|
Cable type
|
GJYXCH-1B6
|
GJYXCH-2B6
|
GJYXCH-4B6
|
|
Cable specification
|
5.2×2.0
|
||
|
Fiber type
|
9/125 (G.657A2)
|
||
|
Fiber counts
|
1
|
2
|
4
|
|
Fiber color
|
Red
|
Blue, orange
|
Blue, orange, green, brown
|
|
Sheath color
|
Black
|
||
|
Sheath material
|
LSZH
|
||
|
Cable dimension mm
|
5.2(±0.2)*2.0(±0.2)
|
||
|
Cable weight Kg/km
|
Approx. 19.5
|
||
|
Min. bending radius mm
|
120
|
||
|
Min. bending radius mm
(Excluding messenger wire) |
10 (Static)
25 (Dynamic) |
||
|
Attenuation dB/km
|
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
|
||
|
Short term tensile N
|
600
|
||
|
Long term tensile N
|
300
|
||
|
Short term crush N/100mm
|
2200
|
||
|
Long term crush N/100mm
|
1100
|
||
|
Operation temperature ℃
|
-20~+60
|
||
Factory:
Quantity:
| LCD Delivery | <10000m | <20000m | <50000m | >100000m |
| 25days | 22days | 18days | 10days | |
COMPANY PROFILE:
Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
