Sc/Upc Sc/Apc SM Fiber Optic Quick Connector
Sc/Upc Sc/Apc Sm Fiber Optic Quick Connector Singlemode Fiber Optic Fast Connector
Description
Fast fiber optic connector
Fast fiber optic connector can provide a quick and easy termination of fibers in the field and options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens
SC quick assembly connector has easy assembly and excellent stability.
Specification
| Article | value |
| Insertion loss | ≤0.3 (max 0.4) |
| Return loss | ≥60dB |
| Connector type | SC/APC |
| Cable | drop 3.0mm / flat 2x3mm cable |
| Fiber clamping force | ≥3N |
| Tensile Strength | Typical ≥40N (Max 50N) |
| Online tensile strength 20N | IL variation (≤0.2dB) RL variation (≤5dB) |
| Working Temperature | -40℃ ~ +75℃ |
| Can be repeatedly used | Possible |
Optical Characteristics
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | oM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| nti-tensile Force (N) | >70 | ||||
| remperature Range (c) | -40+80 | ||||
Ferrule Hole Sizes:
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um
Features
- No special assembling tool
- Easy for learning technology by a simple assembling method (within 1 and half minutes)
- Minimize the defect rate by features of removal and reusable.
- Easy for assembling with mechanical splice and no polishing
- It can quickly solve the on-site termination, easy to use and simple to operate

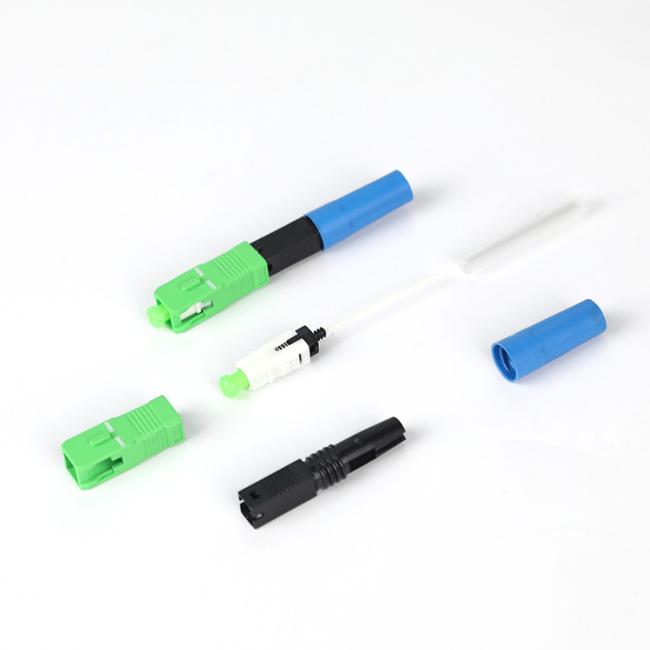

- Products Show
![]()
Application
- Optical network maintaining and repair.
- Local area network environment of connection.
- Fiber optic distribution frame.
- Terminal connection-leg of FTTH optic network.
-
-

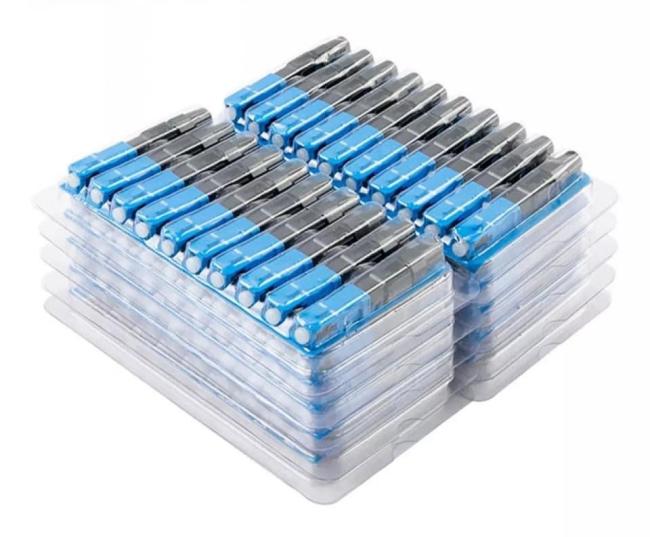

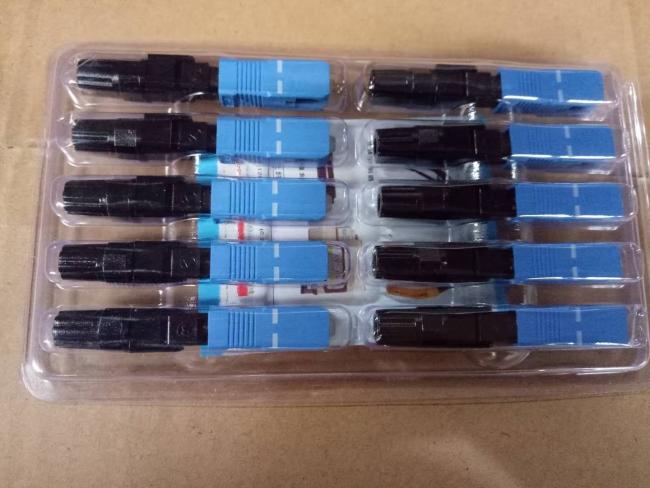

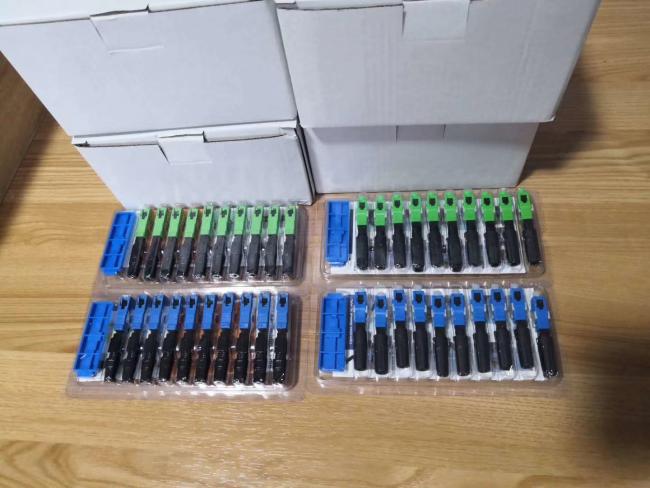

Packing & Delivery
-
![]()
-
![]()
-
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10 years’ history.
2.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
3.What is your warranty period?
25 years for fiber optic cable
4.What is your delivery time?
Usually within 3-5 working days
5.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
6.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
