ISO9001 G.652 G.657 SC/APC Fiber Optic Pigtail

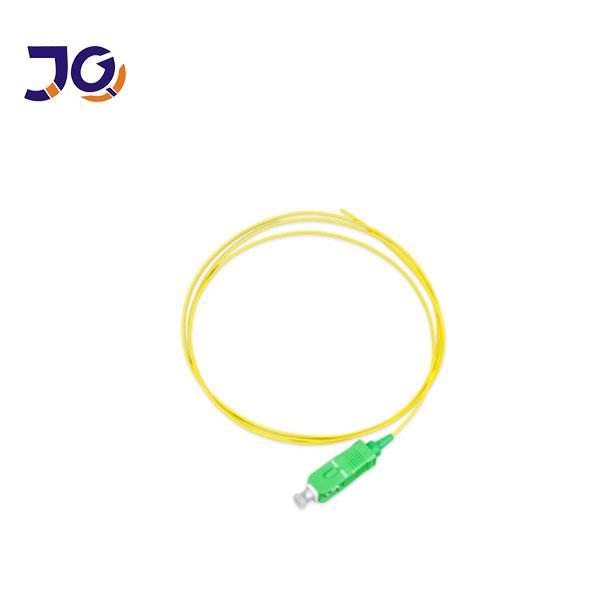

Fiber Optic Single Mode Simplex SC/APC Fiber Optic Pigtail
Feature
1.Low cost
2.Low Insertion Loss & PDL
3.High return loss (low amounts of reflection at the interface)
4.Factory-terminated and Tested
5.Ease of installation
6.Reliability
7.Low environmental sensitivity
8.Connector with Ceramic Ferrules
Application
• Apply for CATV, LAN, Telecom network, test equipment
• CATV
• Telecommunication networks
• Active device termination
• Metro
• Local Area Networks(LANs)
• Test equipment
• Premise installations
Specification
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652/G.657) | MM(OM1/OM2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Loss (dB) | ≤0.25dB | ≤0.3dB |
| TIA/EIA-455-107 | (PC/UPC/APC) | (PC/UPC) |
| Return Loss (dB) | ≥50dB(PC/UPC) | ≥40dB(PC/UPC) |
| TIA/EIA-455-107 | ≥60dB(APC) | |
| Exchange-ability | ≤0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patch cord | |
| Operating Temperature (℃) | -10 ~ +70 | |
| Storage Temperature (℃) | -40 ~ +85 | |
| Package | 1 pieces/bag | |
|
All values specified are with connectors |
||
FAQ
1,Q:What is the MOQ?
A:100 pieces.
2,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
3,Q:What’s delivery time?
A:The general delivery time is 2-3 days after order confirmed. It depends on the order quantity.
4.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.small order is 100% of full price in advance
