Mine Flame Retardant Duct Fiber Optic Cable MGXTSV
Mine Flame-Retardant Fiber Optic Cable MGXTSV
|
Item Name
|
MGXTSV Fiber Optic Cable
|
|
Place of Origin
|
Guangdong,China
|
|
Model Number
|
MGTSV
|
|
Brand Name
|
JQ |
|
Fiber Type
|
Single mode ITU-T G652D
|
|
Fiber No.
|
2-24 cores
|
|
Strength Member
|
Central Steel Wire
|
|
Material of Jacket
|
Flame-retardant Sheath
|
|

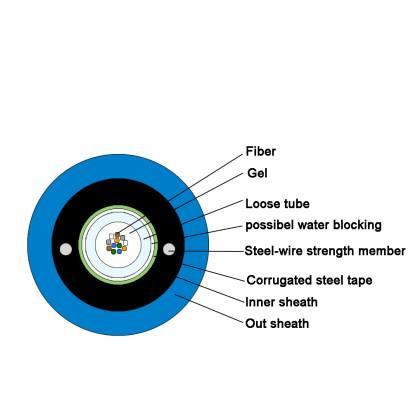

Cable Structure
|
Unit Tube
|
|
Certificate
|
ISO9001/CE/RoHS/CE
|
|
Storing Temperature
|
-40℃ to +70℃
|
|
Application
|
Duct/Aerial
|
Features
1.Good flame retardant performance.
2.High strength loose tube that is hydrolysis resistant.
3.Double sheathes and single armor providing excellent crush resistance, water proof, and avoiding rat bite.
4.Loose tube wrapped by non-weaven tape has the water blocking ability.
5.Special tube filling compound ensure a critical protection of fiber.
6.Blue PVC or LSZH jacket: Flame retardant, the blue color is easy to identify.
7.Crush resistance and flexibility.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Cable Diameter(mm) |
Cable Weight kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic |
| 2~12 | 8 | 78 | 1000/3000 | 1000/3000 | 10D/20D |
| 14~24 | 10 | 90 | 1000/3000 | 1000/3000 | 10D/20D |

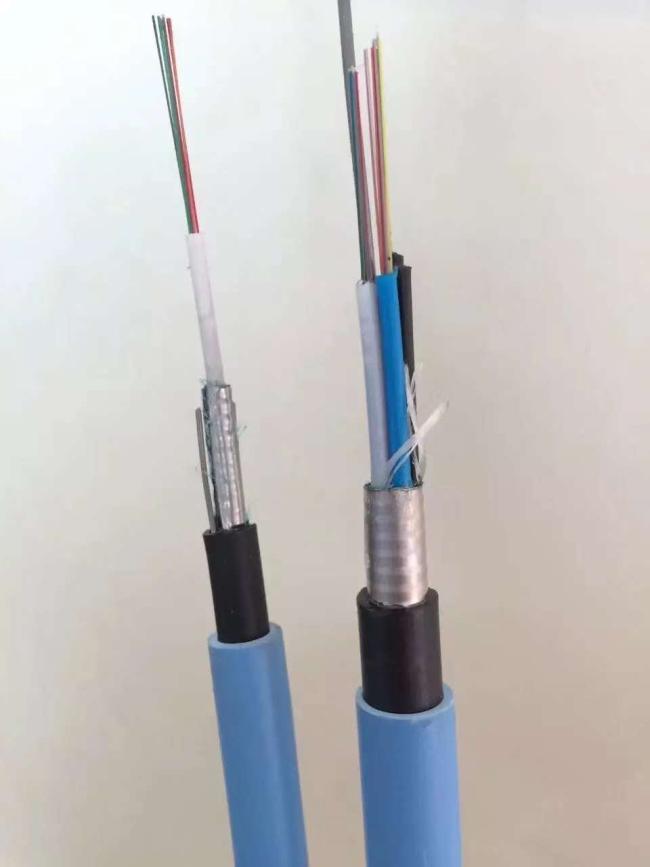

Samples show
Application
Suitable for Mine Duct / Aerial
Storage / Operating Temperature: -40℃~+70℃
Packing&Delivery
1/2/3/4/5 km in one wooden drum,deliver days:5-8work days
