Outdoor Stranded 100m Span ADSS Fiber Optic Cable
Outdoor Stranded 100m Span ADSS 4 / 6 / 12 / 24 /48 /96 Core Fiber Optic Cable
Product Description
ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

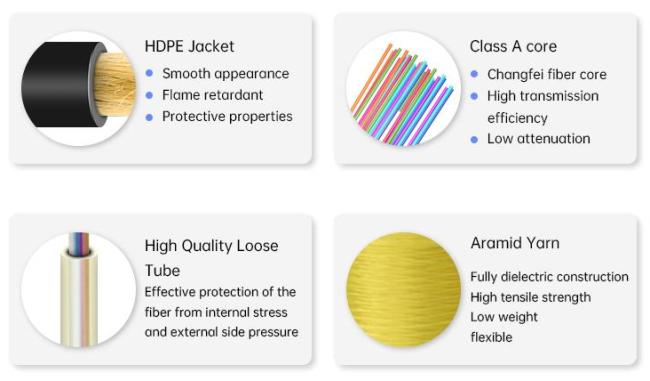

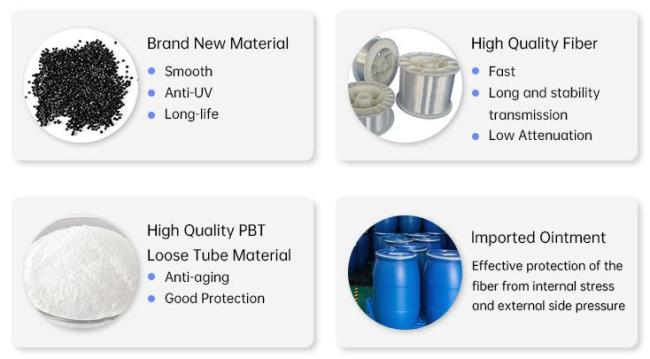

Product Features
Application
Suitable for Aerial Laying method
Storage / Operating Temperature: -40℃~+70℃
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Data
|
Fiber count |
Structure |
Fibers per tube |
Loose tube diameter (mm) |
CSM diameter /pad diameter(mm) |
Nominal Thickness of outer jacket(mm) |
Cable diameter (mm) |
Cable Weight (kg/km) |
| 4 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 81 |
| 6 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 81 |
| 8 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 82 |
| 12 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 82 |
| 24 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 83 |
| 36 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 84 |
| 48 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7 | 11.1±0.5 | 93 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7 | 11.1±0.5 | 95 |
| 96 | 1+8 | 12 | 2.2±0.1 | 3.0/3.9 | 1.7 | 12.5±0.5 | 122 |
| 144 | 1+12 | 12 | 2.2±0.1 | 3.5/6.4 | 1.7 | 15.5±0.5 | 185 |
Package Detail
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
FAQ
5.Can you accept the OEM service?
