Stranded Loose Tube Light Armored Direct Buried Cable
Direct buried Stranded Loose Tube Light-armored Cable 48 Core GYTS/GYTA
Stranded Loose Tube Light-armored Cable GYTS
Product Description

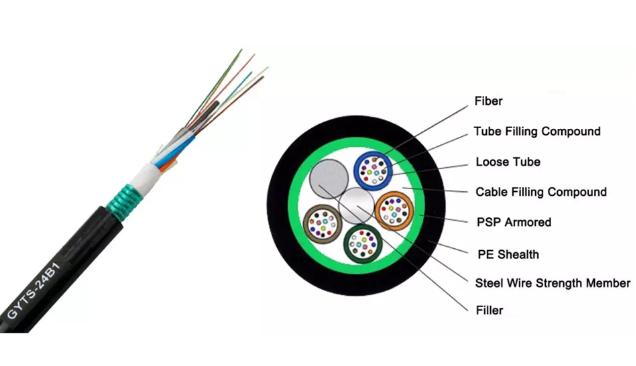

GYTS aerail fiber optic cable, single mode/multimode fibers are positioned in the loose tubes, the 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Which is stranded loose tube fiber optic cable with compact structure, the cable jacket is made of polyethylene, High strength loose tube that is hydrolysis resistant.Cable filling materials ensure high reliability.Tubes and fillers are stranded around the strength member into a circular cable core. An PSP is applier around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.Steel tape makes the cable crush resistant and moisture proof. GYTS has a very good watertight performance.
- Application: Duct / Aerial /Direct buried
- Standard : YD/T 901-2001 and IEC 60794-1
- The fiber, Φ250µm, are positioned in a loose tube made of a high modulus plastic
- Tubes are filled with a water-resistant filling compound
- A steel wire, locates in the center of core as a metallic strength member
- Tubes (and fillers) are stranded around the strength member into a compact and circular cable core
- The cable core is filled with filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath. The cable is completed with a PE outer sheath.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 9.8 | 95 |
10
|
20
|
1500 | 600 | 1000 | 300 |
| 32-36 | 10.3 | 115 | 1500 | 600 | 1000 | 300 | ||
| 38-60 | 10.7 | 115 | 1500 | 600 | 1000 | 300 | ||
| 62-72 | 11.3 | 140 | 1500 | 600 | 1000 | 300 | ||
| 74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 | ||
| 98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 | ||
| 122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 | ||
| 146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 | ||
| 218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 | ||
| 242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 | ||
Application
Suitable for external application in duct and aerial
